Intake CMP Sensor

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Disconnect the intake CMP sensor connector.
  4. Remove the intake CMP sensor.

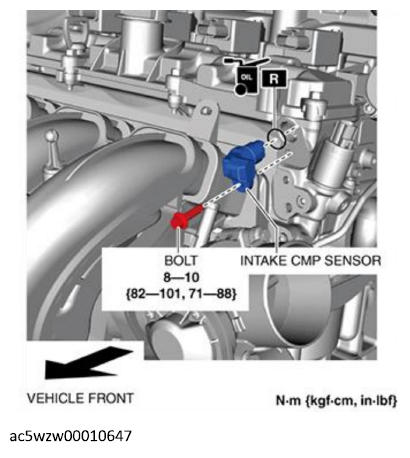

    Fig 1: Intake Camshaft Position Sensor Bolt With Torque Specification
    G12184569Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
