Boost Air Temperature Sensor Removal/Installation

Replacement Part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
2. Disconnect the boost air temperature sensor connector.
3. Remove the boost air temperature sensor.

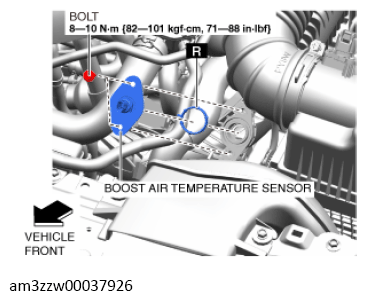

   Fig 1: Boost Air Temperature Sensor Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
4. Install in the reverse order of removal.
