Crankshaft Position (CKP) Sensor Removal/Installation: Notes

Replacement Part

O-ring

Quantity: 1

Location of use: CKP sensor

Oil and Chemical Type

Engine oil

Type: Recommended oil

CAUTION:

When replacing the CKP sensor, make sure there is no foreign matter on it such as metal shavings. If it is installed with foreign matter, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.
When replacing the CKP sensor with a new one, perform the CKP sensor learning value clearing procedure to clear the learning value stored in the PCM. If the stored learning value is not cleared, the engine performance may not function at its full capability. (See CKP SENSOR LEARNING VALUE CLEARING PROCEDURE .)

Turn the steering wheel to full right lock.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Lift up the vehicle.
Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

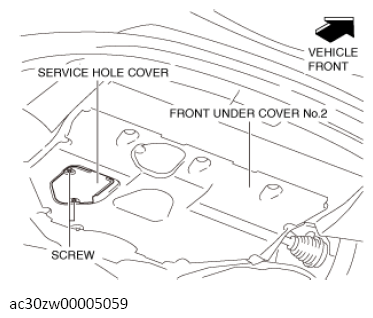

Remove the service hole cover (installed to front under cover No. 2).

Courtesy of MAZDA MOTORS CORP.
Disconnect the CKP sensor connector.
Remove the bolt.

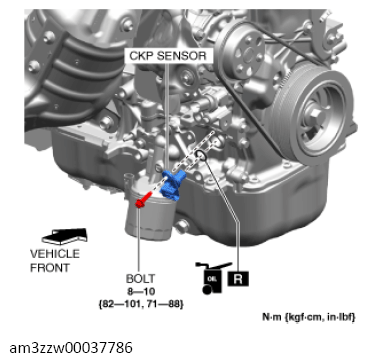

Fig 1: Crankshaft Position Sensor Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the CKP sensor.
Install in the reverse order of removal.
When replacing the CKP sensor with a new one, clear the learning value. (See CKP SENSOR LEARNING VALUE CLEARING PROCEDURE .)
