Specification (Reference)

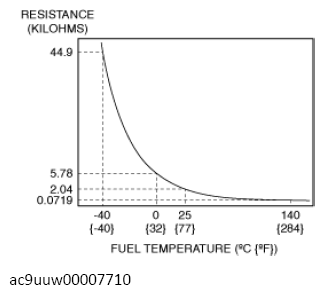

RESISTANCE SPECIFICATION

Fuel temperature (°C {°F}) Resistance (Kilohms)
-40 {-40} Approx. 44.9
0 {32} Approx. 5.78
25 {77} Approx. 2.04
140 {284} Approx. 0.0719
G13732735Courtesy of MAZDA MOTORS CORP.
