Switch Panel Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the console side panel. (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)

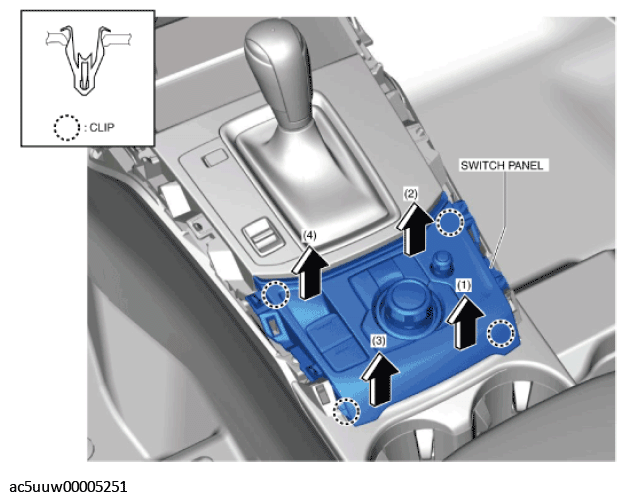

- Using a remover tool, move the switch panel in the order of arrows (1), (2), (3), and (4) shown in the figure, detach the clips, and remove the switch panel.
- Disconnect the commander switch connector.
- Disconnect the electric parking brake switch connector.NOTE:
- When replacing the switch panel, remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
- Install in the reverse order of removal.
