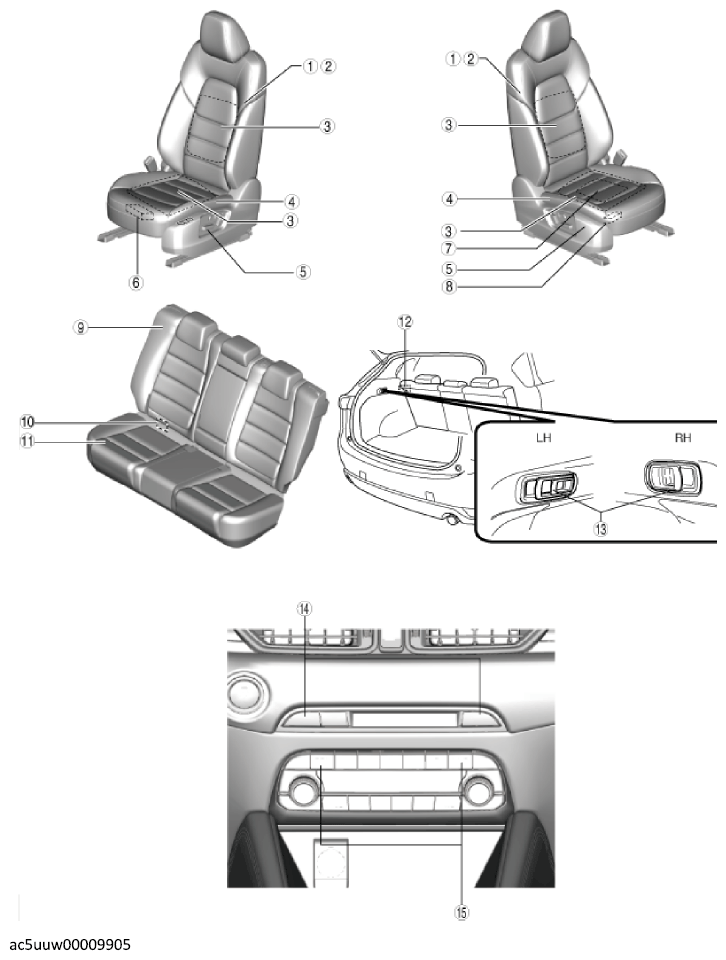

| 1 |
Front seat
(See FRONT SEAT REMOVAL/INSTALLATION .)
(See TILT MOTOR INSPECTION .)
(See SLIDE MOTOR INSPECTION .)
(See LIFT MOTOR INSPECTION .)
(See RECLINER MOTOR INSPECTION .) |
| 2 |
Front seat back
(See FRONT SEAT BACK FRAME REMOVAL/INSTALLATION .)
(See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .)
(See LUMBAR SUPPORT MOTOR INSPECTION .) |
| 3 |
Front seat warmer unit(with front seat warmer system)
(See FRONT SEAT WARMER UNIT INSPECTION .) |
| 4 |
Front seat cushion
(See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
(See FRONT SEAT CUSHION FRAME/ADJUSTER UNIT DISASSEMBLY/ASSEMBLY .)
(See FRONT SEAT WARMER UNIT INSPECTION .) |
| 5 |
Front seat side cover
(See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
(See POWER SEAT SWITCH REMOVAL/INSTALLATION .)
(See POWER SEAT SWITCH INSPECTION .)
(See POSITION MEMORY SWITCH REMOVAL/INSTALLATION .)
(See POSITION MEMORY SWITCH INSPECTION .) |
| 6 |
Position memory control module
(See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION .)
(See POSITION MEMORY CONTROL MODULE INSPECTION .) |
| 7 |
Occupancy sensor(with occupancy sensor)
(See OCCUPANCY SENSOR INSPECTION .) |
| 8 |
Front seat warmer control unit(with front seat warmer system)
(See FRONT SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .)
(See FRONT SEAT WARMER CONTROL UNIT INSPECTION .) |
| 9 |
Rear seat back
(See REAR SEAT BACK REMOVAL/INSTALLATION .)
(See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .)
(See REAR SEAT BACK LATCH REMOVAL/INSTALLATION .)
(See REAR SEAT BACK TRIM REMOVAL/INSTALLATION .)
(See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION .)
(See REAR SEAT CENTER ARMREST TRIM REMOVAL/INSTALLATION .)
(See REAR SEAT WARMER UNIT INSPECTION .)
(See REAR SEAT WARMER SWITCH REMOVAL/INSTALLATION .)
(See REAR SEAT WARMER SWITCH INSPECTION .) |
| 10 |
Rear seat warmer control unit(with rear seat warmer system)
(See REAR SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .)
(See REAR SEAT WARMER CONTROL UNIT INSPECTION .) |
| 11 |
Rear seat cushion
(See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
(See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
(See REAR SEAT WARMER UNIT INSPECTION .) |
| 12 |
Rear seat back striker
(See REAR SEAT BACK STRIKER REMOVAL/INSTALLATION .) |
| 13 |
Remote handle lever
(See REMOTE HANDLE LEVER REMOVAL/INSTALLATION .) |
| 14 |
Front seat warmer switch(with front seat warmer system)
(See FRONT SEAT WARMER SWITCH REMOVAL/INSTALLATION .) |
| 15 |
Seat ventilation switch(with seat ventilation system)
(See SEAT VENTILATION SWITCH REMOVAL/INSTALLATION .) |
