Front Power Window Motor Installation Note

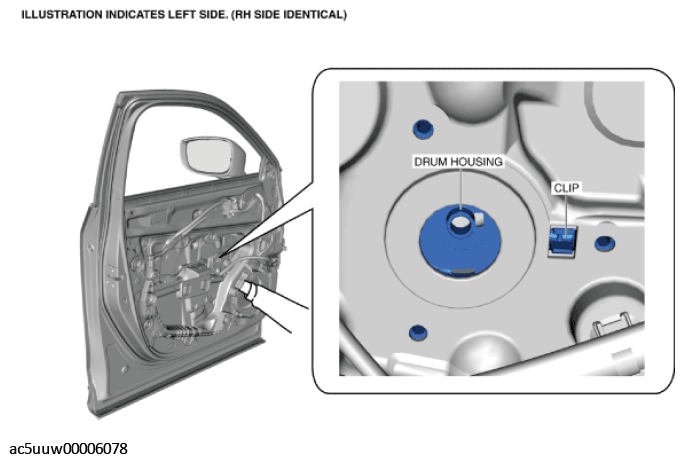

- Insert your hand through the front door speaker installation hole and install the front power window motor while securing the drum housing so that the clip shown in the figure does not detach.NOTE:
- If the front power window motor is installed without securing the front power window regulator drum housing, the drum housing may detach from the front door module panel and the front power window motor may not install correctly.
