Rear Door Glass Removal/Installation

  1. Fully open the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)

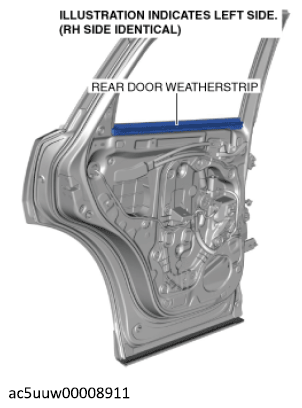

  5. Remove the rear door weatherstrip.
    G12183788Courtesy of MAZDA MOTORS CORP.

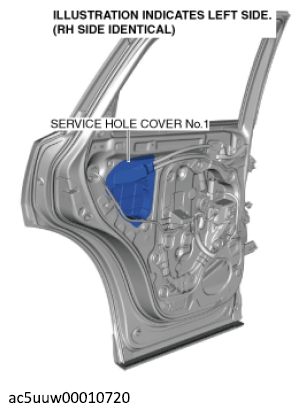

  6. Remove service hole cover No. 1.
    G12183789Courtesy of MAZDA MOTORS CORP.

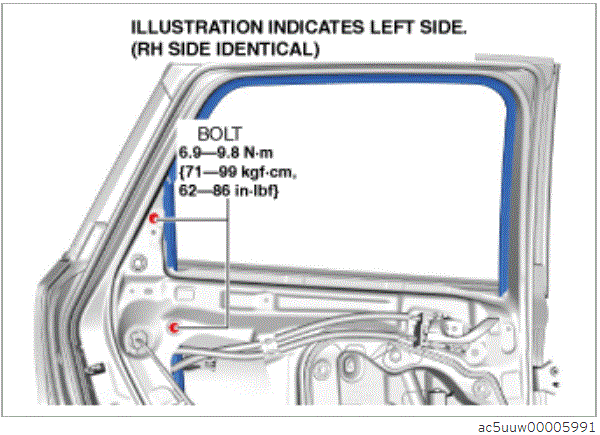

  7. Remove the bolts.
    Fig 1: Rear Door Glass Bolts With Torque Specification
    G11427710Courtesy of MAZDA MOTORS CORP.

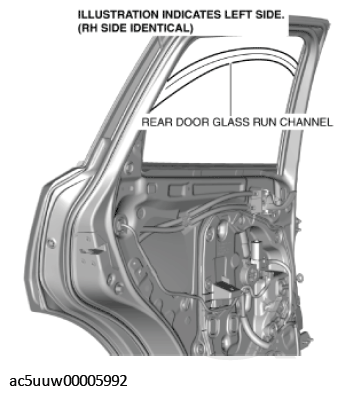

  8. Partially peel back the rear door glass run channel.
    G11427711Courtesy of MAZDA MOTORS CORP.

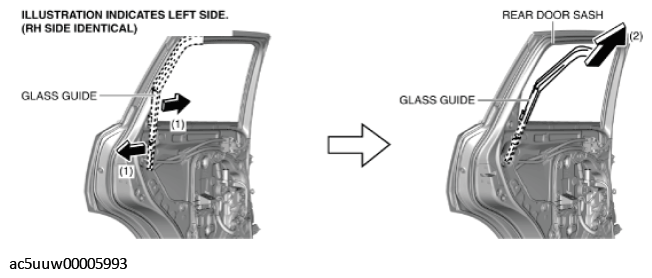

  9. Insert your hand from the service hole cover No. 1 opening, tilt the glass guide in the directions of arrows (1) shown in the figure, an d pull it out in the direction of arrow (2) while setting the rear door sash aside.
    G11427712Courtesy of MAZDA MOTORS CORP.
  10. Move the rear door glass run channel in the direction of the arrows shown in the figure, and remove the rear door glass run channel from the glass guide.
    G11427713Courtesy of MAZDA MOTORS CORP.

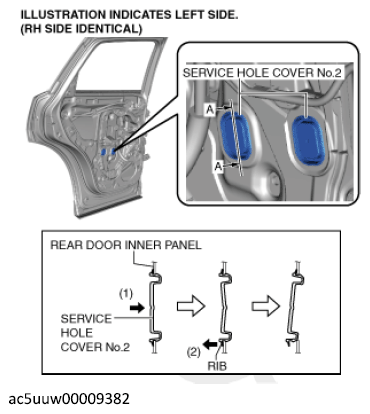

  11. While pressing the center of service hole cover No. 2 in the direction of arrow (1) shown in the figure, pull the rib in the direction of arrow (2) and remove the service hole cover.
    G12183794Courtesy of MAZDA MOTORS CORP.

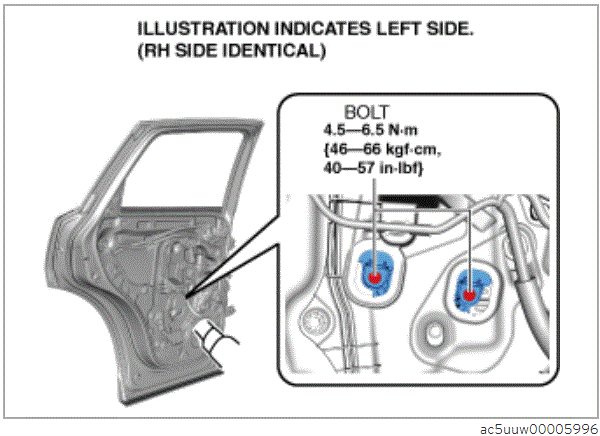

  12. Remove the bolts while supporting the rear door glass from the rear door speaker installation hole with your hand.
    Fig 2: Rear Door Speaker Installation Hole Bolts With Torque Specification
    G11427715Courtesy of MAZDA MOTORS CORP.

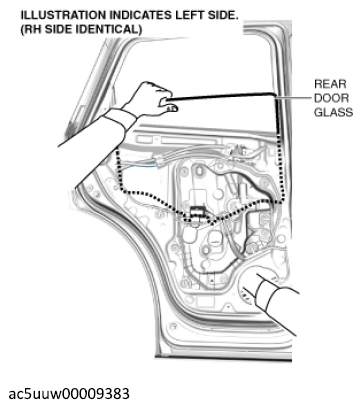

  13. Hold the upper part of the rear door glass while supporting the rear door glass from the rear door speaker installation hole with your hand.
    G12183796Courtesy of MAZDA MOTORS CORP.

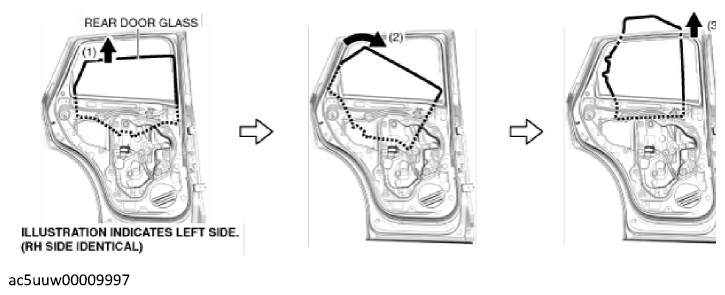

  14. Lift the rear door glass in the direction of arrow (1) shown in the figure, shift the hand which is supporting the rear door glass from the rear door speaker installation hole to the upper part of the rear door glass, then pull it in the direction of arrow (3) while tilting it in the direction of arrow (2) shown, and remove it from the rear door.
    G12183797Courtesy of MAZDA MOTORS CORP.
  15. Install in the reverse order of removal.
