Rear Power Window Motor Removal/Installation: Notes

  1. Fully open the rear door glass.
    CAUTION:
    • If the rear power window motor is removed with the rear door glass fully closed, the rear door glass may fall off and be damaged.
    • If the rear door glass cannot be fully opened due to a rear power window motor malfunction, remove the rear door speaker, insert your hand through the rear door speaker installation hole, and while supporting the rear door glass with your hand so that it does not fall, remove the rear power window motor. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Disconnect the connector.

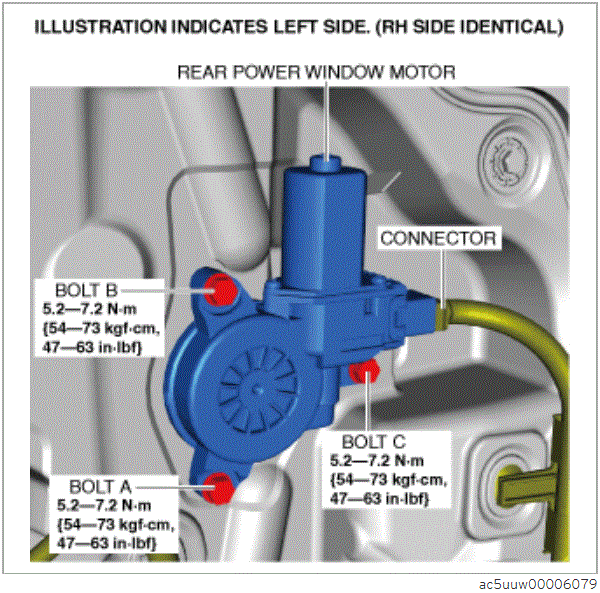

    Fig 1: Rear Power Window Motor Bolts With Torque Specification
    G11427719Courtesy of MAZDA MOTORS CORP.
  6. Remove bolt A.
  7. Remove bolt B.
  8. Remove bolt C.
  9. Remove the rear power window motor.
  10. Install in the reverse order of removal. (See Rear Power Window Motor Installation Note .)
