Rear Power Window Motor Installation Note

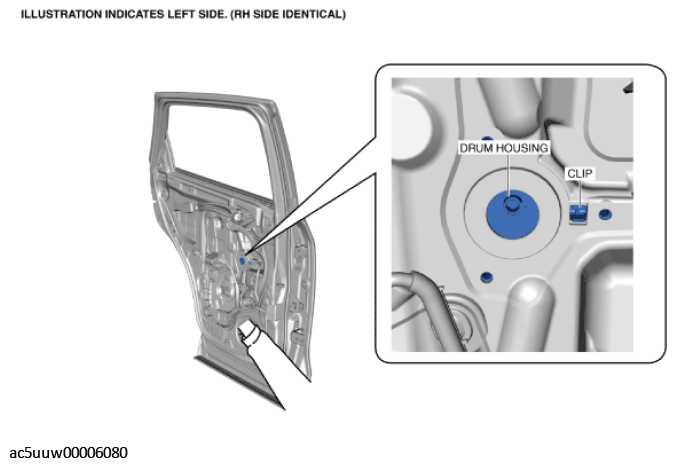

- Insert your hand through the rear door speaker installation hole and install the rear power window motor while securing the drum housing so that the clip shown in the figure does not detach.
NOTE:
- If the rear power window motor is installed without securing the rear power window regulator drum housing, the drum housing may detach from the rear door module panel and the rear power window motor may not install correctly.
