Sensor Cover Removal/Installation

NOTE:

There are two types of the sensor cover. Verify the sensor cover shape before performing the procedures.

Courtesy of MAZDA MOTORS CORP.

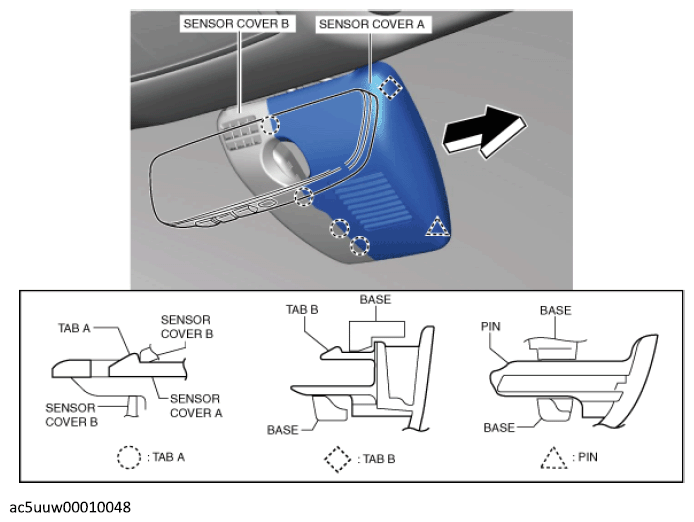

Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and pin, and remove sensor cover A from the base.

Courtesy of MAZDA MOTORS CORP.

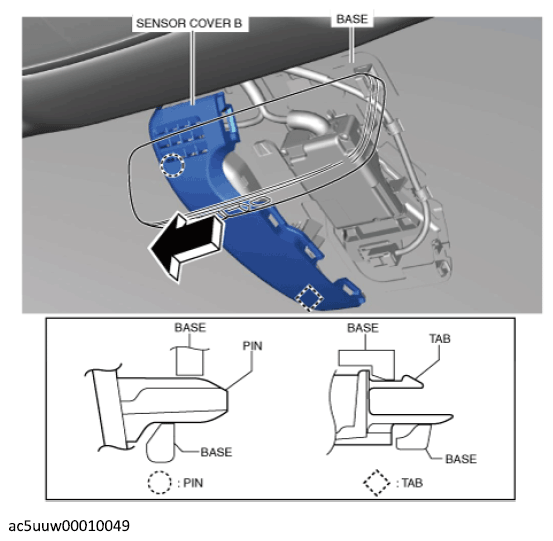

Pull sensor cover B in the direction of the arrow shown in the figure, detach the pin and tab, and remove sensor cover B from the base.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
