Off-Road Traction Assist Switch Inspection [AWD]: Notes
- Remove the OFF-ROAD TRACTION ASSIST switch. (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [AWD] .)

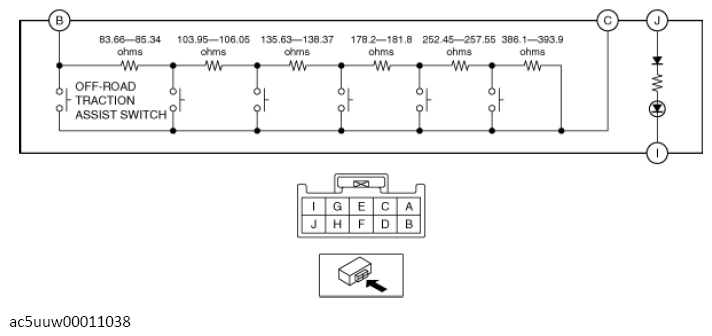

- Verify that the resistance between the OFF-ROAD TRACTION ASSIST switch terminals B and C is as indicated in the table.
- If not as indicated in the table, replace the OFF-ROAD TRACTION ASSIST switch.
