Center Accessory Socket Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
2. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
3. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
4. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
9. Center accessory socket (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)

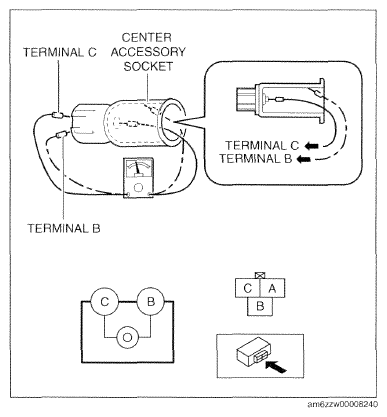

Connect the tester probe to the position shown in the figure and verify that there is continuity.

Courtesy of MAZDA MOTORS CORP.

If it cannot be verified, replace the center accessory socket. (See CENTER ACCESSORY SOCKET REMOVAL/INSTALLATION .)
