VIN Y

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

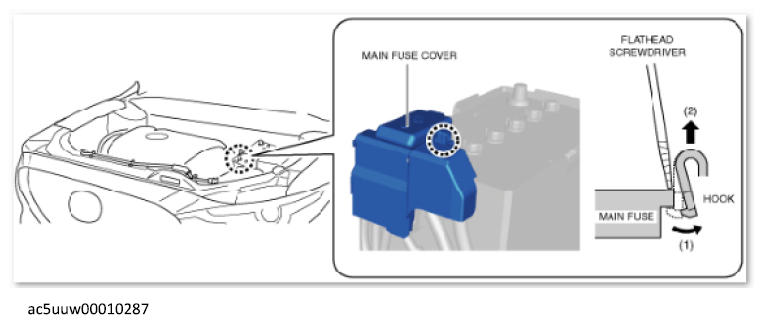

  2. While pressing the main fuse cover hook in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver, lift up the main fuse cover in the direction of the arrow (2) to detach the main fuse cover hook from the main fuse tab.
    G12189815Courtesy of MAZDA MOTORS CORP.
  3. Remove the main fuse cover.
  4. Remove the nuts.
    Fig 1: Main Fuse Nuts With Torque Specification
    G12189816Courtesy of MAZDA MOTORS CORP.
  5. Remove the main fuse.
  6. Install in the reverse order of removal.
