Rear Accessory Socket Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    2. Bass-box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    3. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Partially peel the trunk side trim.

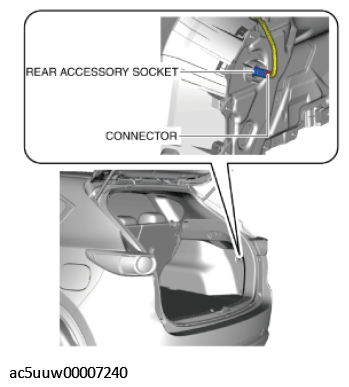

  4. Disconnect the connector.
    G11426333Courtesy of MAZDA MOTORS CORP.

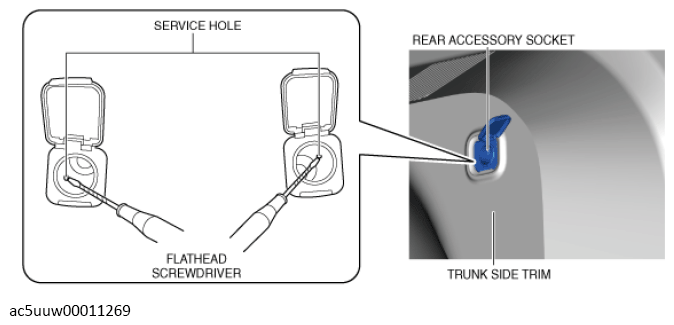

  5. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
    G13677098Courtesy of MAZDA MOTORS CORP.

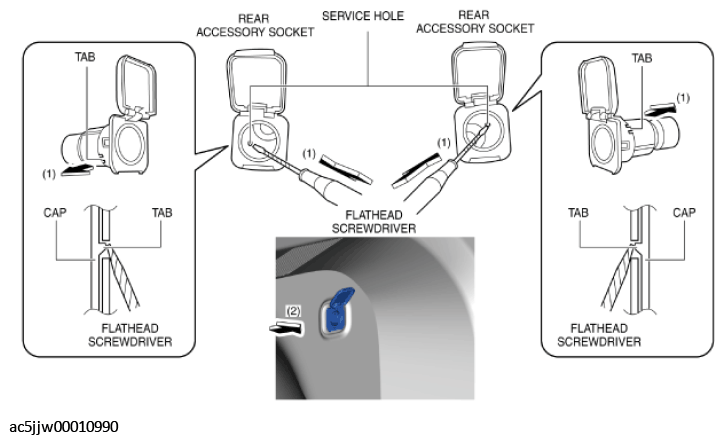

  6. While pressing the cap tab in the direction of arrow (1) shown in the figure, push out the rear accessory socket in the direction of arrow (2) to detach the cap tab from the socket.
    G11426335Courtesy of MAZDA MOTORS CORP.

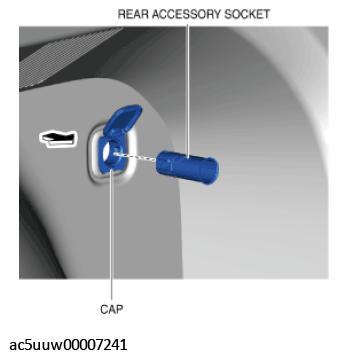

  7. Pull the rear accessory socket in the direction of the arrow shown in the figure and remove it.
    G11426336Courtesy of MAZDA MOTORS CORP.

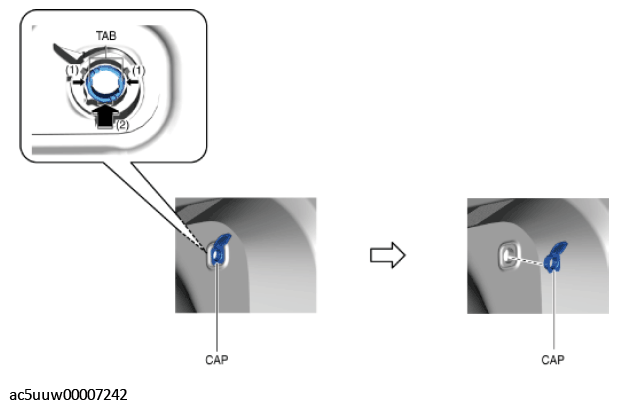

  8. While pressing the cap tabs in the direction of arrows (1) shown in the figure, press the cap in the direction of arrow (2) to detach the cap tabs from the trunk side trim.
    G11426337Courtesy of MAZDA MOTORS CORP.
  9. Remove the cap.
  10. Install in the reverse order of removal.
