Relay and Fuse Block Lower Cover Installation Note
NOTE:
- When installing the relay and fuse block lower cover to the relay and fuse block middle cover, the wiring harness could get caught between the relay and fuse block middle cover and the relay and fuse block lower cover resulting in open or short circuit in the wiring harness. When installing the relay and fuse block lower cover, disassemble the relay and fuse block lower cover and install one at a time.

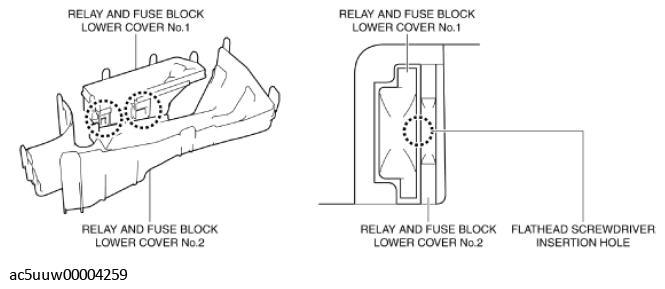

- Insert a flathead screwdriver into the gap between relay and fuse block lower covers No. 1 and 2 shown in the figure.

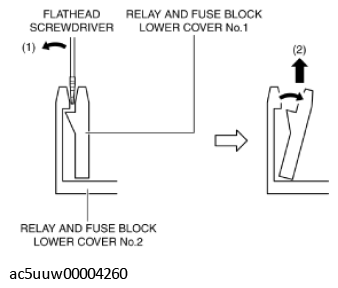

- Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, pull up relay and fuse block lower cover No. 1 in the direction of the arrow (2) shown in the figure, and detach the relay and fuse block lower cover No. 1 tab from relay and fuse block lower cover No. 2.
- Detach all the relay and fuse block lower cover No. 1 tabs from relay and fuse block lower cover No. 2, and remove relay and fuse block lower cover No. 1 from relay and fuse block lower cover No. 2.
- Install relay and fuse block lower covers No. 1 and 2.
