Generator Disassembly/Assembly [VIN M]: Notes

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

Generator type A

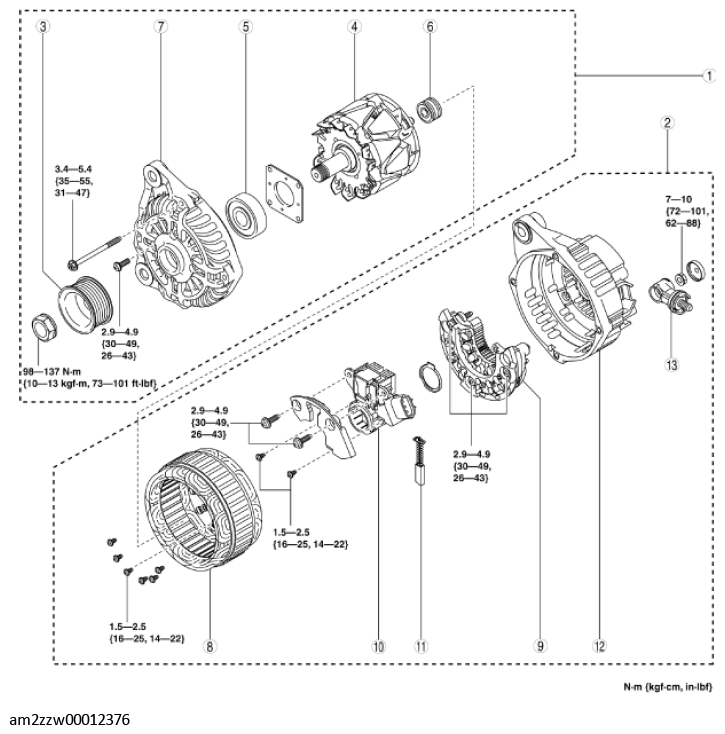

Fig 1: Exploded View Of Generator Components With Torque Specification (Type A)

Courtesy of MAZDA MOTORS CORP.

Generator type B

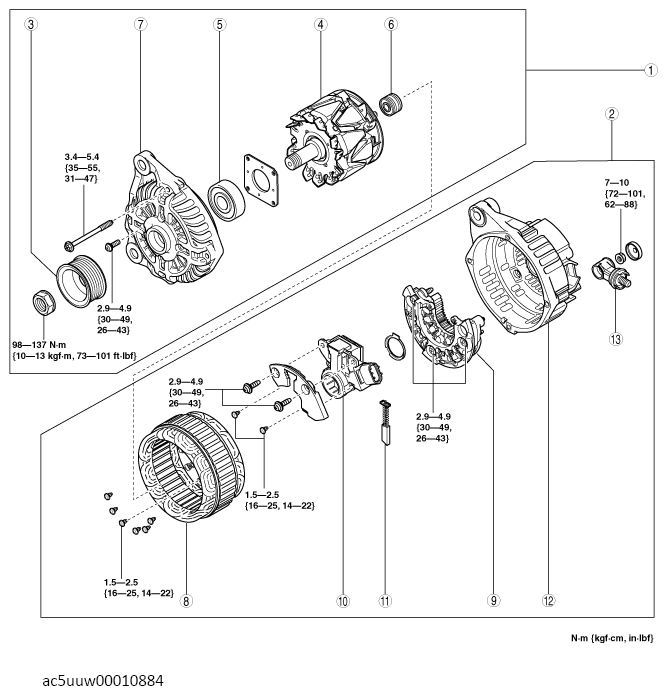

Fig 2: Exploded View Of Generator Components With Torque Specification (Type B)

Courtesy of MAZDA MOTORS CORP.
