PCM Assembly Installation Note

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the PCM assembly shown in the figure.

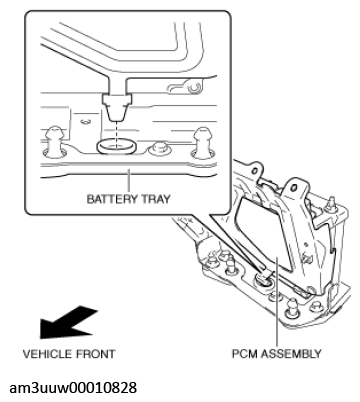

Fig 1: Installing PCM Assembly
G11450655Courtesy of MAZDA MOTORS CORP.
