Glass/Windows/Mirrors Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

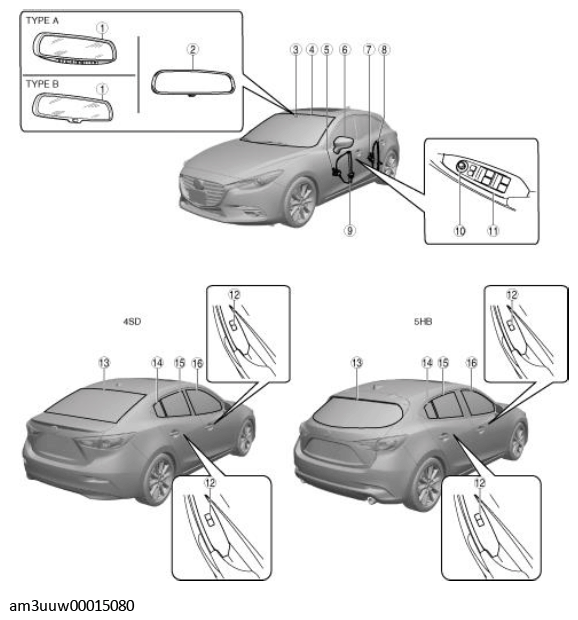

Fig 1: Glass/Windows/Mirrors Parts Location

G11448989

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Auto-dimming mirror (See AUTO-DIMMING MIRROR REMOVAL/INSTALLATION .) (See AUTO-DIMMING MIRROR INSPECTION .)
2	Rearview mirror (See REARVIEW MIRROR REMOVAL/INSTALLATION .)
3	Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
4	Windshield (See WINDSHIELD REMOVAL .) (See WINDSHIELD INSTALLATION .)
5	Front power window motor (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .) (See FRONT POWER WINDOW MOTOR INSPECTION .)
6	Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR INSPECTION .) (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .) (See OUTER MIRROR GLASS INSPECTION .) (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
7	Rear power window motor (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .) (See REAR POWER WINDOW MOTOR INSPECTION .)
8	Rear power window regulator (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
9	Front power window regulator (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
10	Power outer mirror switch (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR SWITCH INSPECTION .)
11	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW MAIN SWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
12	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW SUBSWITCH INSPECTION .)
13	Rear window glass (See REAR WINDOW GLASS REMOVAL .) (See REAR WINDOW GLASS INSTALLATION .) (See REAR WINDOW DEFOGGER INSPECTION .) (See REAR WINDOW DEFOGGER SYSTEM INSPECTION .) (See REAR WINDOW DEFOGGER/GLASS ANTENNA REPAIR .)
14	Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
15	Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
16	Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
