Power Window Main Switch Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the cover.

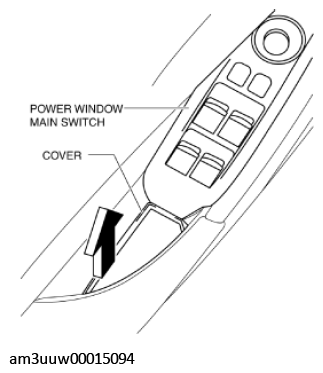

    Fig 1: Removing Power Window Main Switch Cover
    G11449047Courtesy of MAZDA MOTORS CORP.
  3. Insert a remover tool shown in the figure and remove the tab A in the direction of the arrow (1).

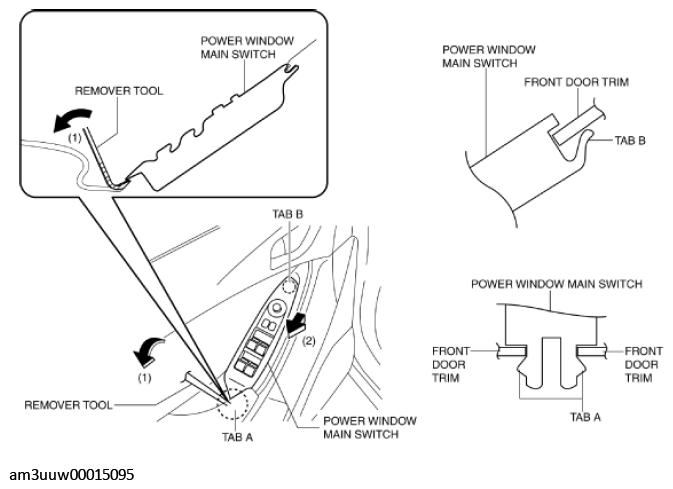

    Fig 2: Removing Power Window Main Switch Tab A
    G11449048Courtesy of MAZDA MOTORS CORP.
  4. Slide the power window main switch in the direction of the arrow (2) shown in the figure and remove the tab B.
  5. Disconnect the power window main switch connector.
  6. Pull the edge of power window main switch cover in the direction of the arrows (1) and detach the tabs.

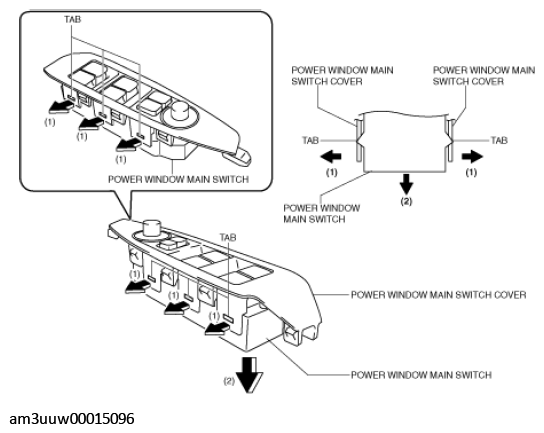

    Fig 3: Pulling Edge Of Power Window Main Switch
    G11449049Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window main switch in the direction of the arrow (2) shown in the figure.
  8. Install in the reverse order of removal.
