Power Window SUBSWITCH Inspection

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table using a tester.

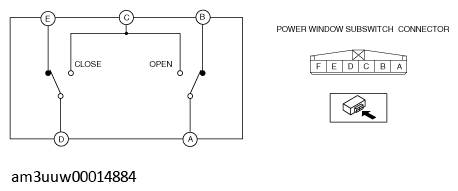

Fig 1: Power Window Subswitch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

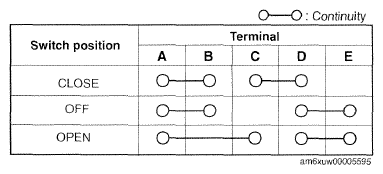

Fig 2: Power Window Subswitch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
