Rearview Mirror Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw.

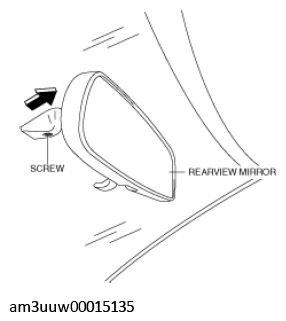

    Fig 1: Removing/Installing Rearview Mirror
    G11449108Courtesy of MAZDA MOTORS CORP.
  2. Pull the rearview mirror in the direction of the arrow shown in the figure.
  3. Install in the reverse order of removal.
