Sensor Cover Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the sensor cover A in the direction of the arrow shown in the figure and detach the tab A of the sensor cover A and sensor cover B.

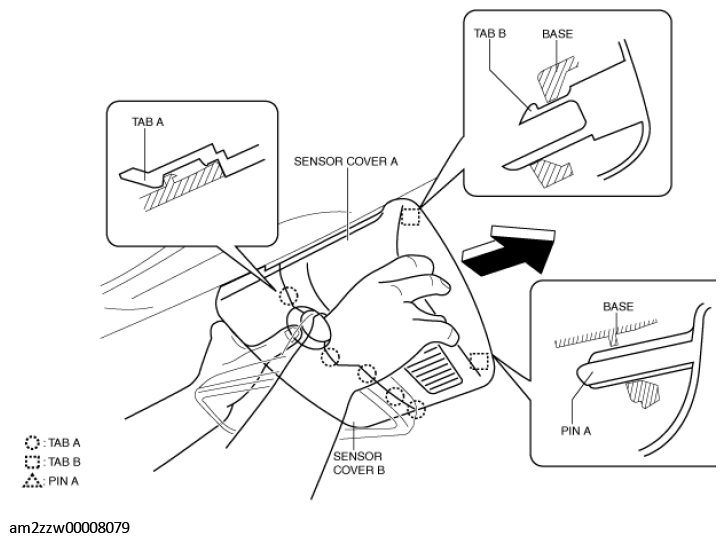

    Fig 1: Detaching Tab A Of Sensor Cover A And Sensor Cover B
    G11449109Courtesy of MAZDA MOTORS CORP.
  2. Pull the sensor cover A in the direction of the arrow shown in the figure, detach the tab B and pin A for the sensor cover A and the base, and remove the sensor cover A from the base.
  3. Remove the wiring harness from the hook.

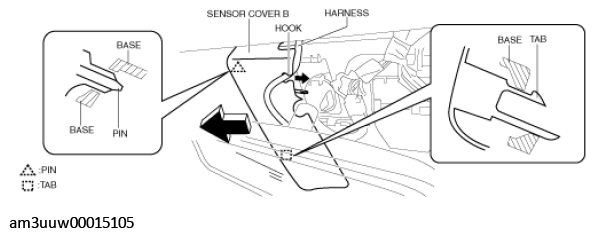

    Fig 2: Removing Wiring Harness
    G11449110Courtesy of MAZDA MOTORS CORP.
  4. Pull the sensor cover B in the direction of the arrow shown in the figure, detach the tab and pin for the sensor cover B and the base, and remove the sensor cover B from the base.
  5. Install in the reverse order of removal.
