Not Reusing Windshield

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
3. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
4. Forward sensing camera (FSC) (with FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
5. Rain sensor (with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .)
6. Auto-dimming mirror (with auto-dimming mirror) (See AUTO-DIMMING MIRROR REMOVAL/INSTALLATION .)
7. Rearview mirror (without auto-dimming mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION .)
8. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
9. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
10. Front map light (dual light type) (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
12. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
Set the headliner out of the way.

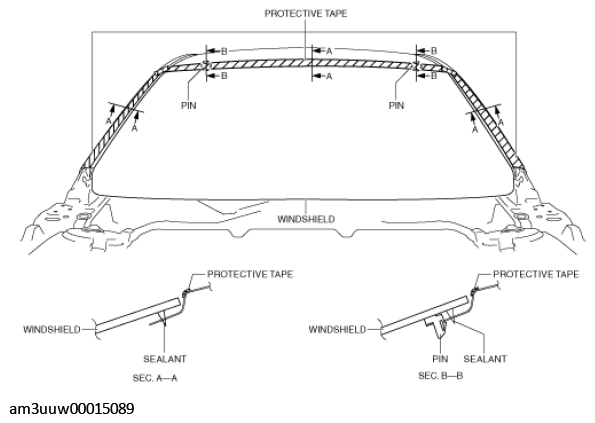

Apply protective tape along the edge of the body.
NOTE:
- Overlap and adhere the protective tape to the corners to prevent damage.
Fig 1: Applying Protective Tape
Courtesy of MAZDA MOTORS CORP.

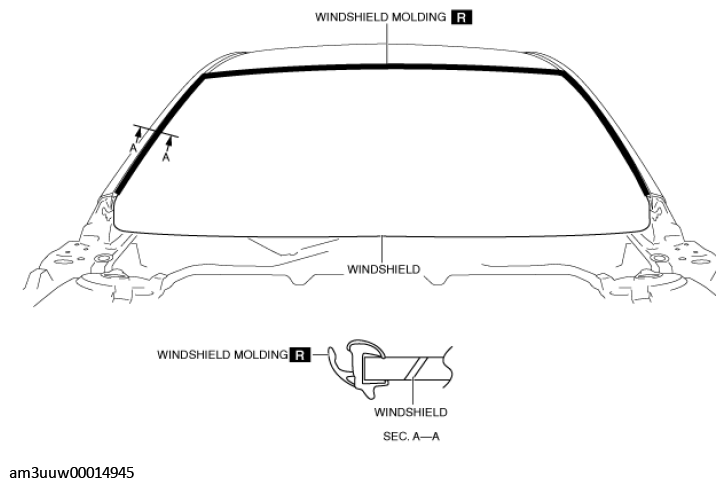

Remove the windshield molding by pulling it outward.
NOTE:
- If the windshield molding is difficult to remove, warm the windshield molding using a hot air blower.
Fig 2: Removing Windshield Molding
Courtesy of MAZDA MOTORS CORP.
Cut out the sealant all around the glass using a sealant remover.
NOTE:
- If it is difficult to cut sealant, use piano wire and follow the procedure under "Reusing Windshield".
Fig 3: Cutting Sealant Using Sealant Remover
Courtesy of MAZDA MOTORS CORP.
Remove the windshield.
