Not P Position Switch Inspection: Notes

NOTE:
  • The not P position switch is built into the selector lever component.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    3. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
    4. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    5. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    7. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    8. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. Disconnect the selector lever component connector.

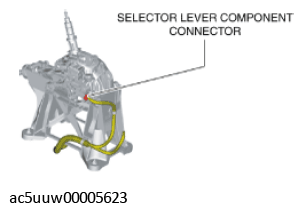

    G11429134Courtesy of MAZDA MOTORS CORP.
  4. Verify that the continuity between selector lever component terminals B and G.
    G11279402Courtesy of MAZDA MOTORS CORP.
