Cable Outer End (Transaxle Side) Installation Note

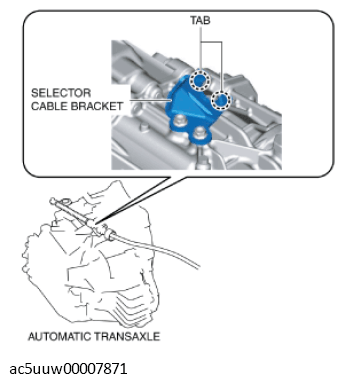

- Verify that the selector cable bracket tabs are not deformed.
- If the selector cable bracket tabs are deformed, replace them with new ones. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6A-EL] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [FW6AX-EL] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [VIN Y)] .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL (VIN Y)] .)

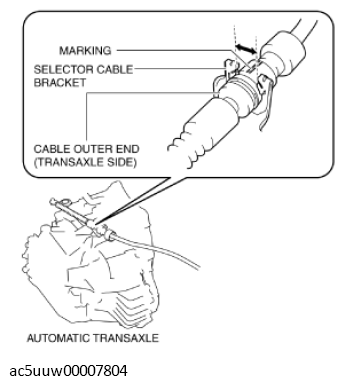

- Assemble the cable outer end (transaxle side) to the selector cable bracket so that the marking is in the area of the arrow shown in the figure.
