| Description |
Position memory control module (front seat) power supply voltage low input |
| Detection condition |
- Position memory control module (front seat) detects the following conditions:
- Position memory control module (front seat) power supply circuit (terminal 1M) voltage of 9 V or less is detected.
- Position memory control module (front seat) power supply circuit (terminal 1G) voltage of 6.5 V or more, 9V or less is detected for 10 s or more.
|
| Fail-safe |
Not applicable |
| POSSIBLE CAUSE |
- DTCs are stored in the PCM.
- Battery malfunction
- Generator malfunction
- Position memory control module (front seat) connector or terminal malfunction

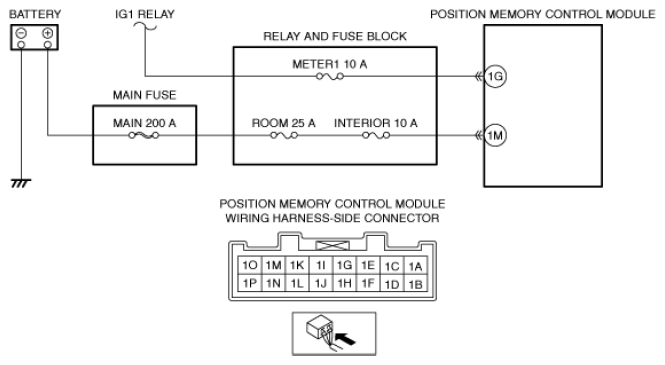

- Position memory control module (front seat) power supply circuit (terminals 1G and 1M) malfunction.
- IG1 relay-Position memory control module (front seat) terminal 1G
- Battery positive terminal-Position memory control module (front seat) terminal 1M
- Front seat malfunction
- Position memory control module (front seat) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
