Without Sensor Cover

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

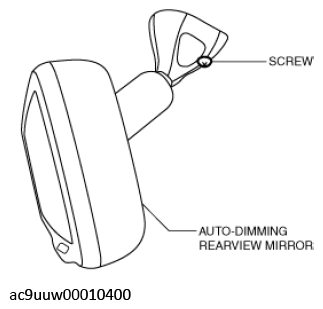

  2. Loosen the screw.
    G12265472Courtesy of MAZDA MOTORS CORP.

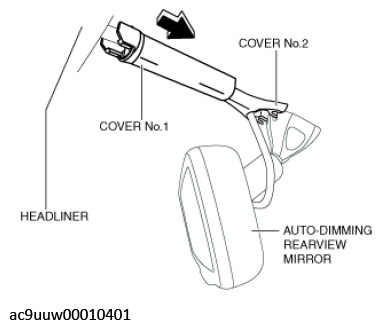

  3. Remove cover No. 1 in the direction of the arrow shown in the figure.
    G12265473Courtesy of MAZDA MOTORS CORP.

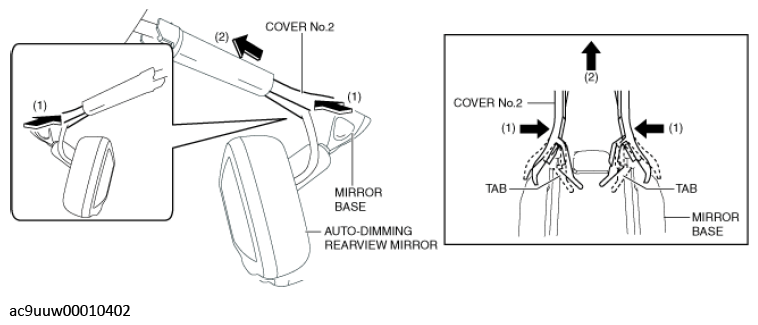

  4. Detach the tabs while pressing cover No. 2 in the direction of the arrow (1) shown in the figure, then remove cover No. 2 in the direction of the arrow (2).
    G12265474Courtesy of MAZDA MOTORS CORP.

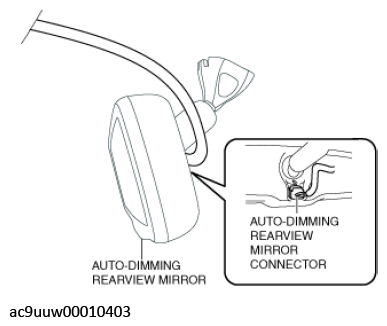

  5. Disconnect the auto-dimming rearview mirror connector.
    G12265475Courtesy of MAZDA MOTORS CORP.

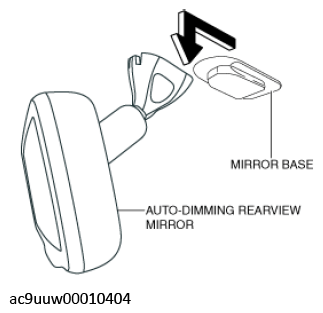

  6. Remove the auto-dimming rearview mirror in the direction of arrow from the mirror base.
    G12265476Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
