With Sensor Cover

NOTE:

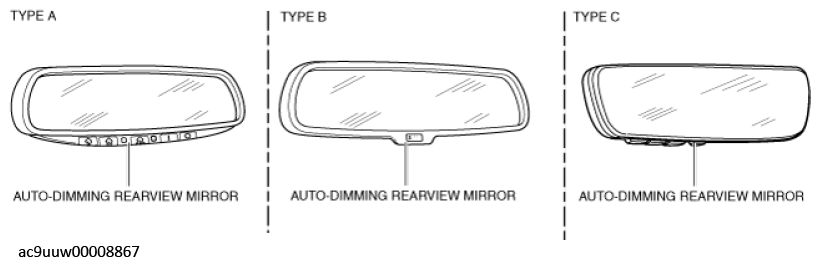

There are three types of auto-dimming rearview mirror. Verify the auto-dimming rearview mirror shape before performing the procedures.

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION .)

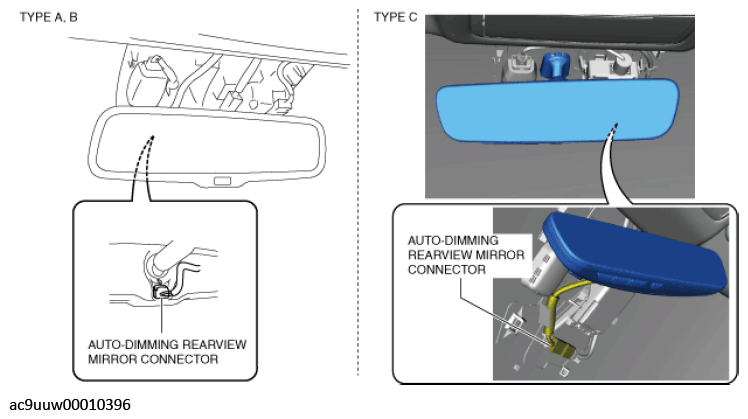

Disconnect the auto-dimming rearview mirror connector.

Courtesy of MAZDA MOTORS CORP.

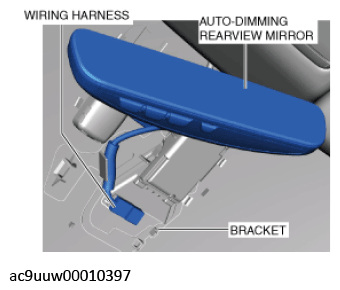

Remove the wiring harness from the bracket. (type C)

Courtesy of MAZDA MOTORS CORP.

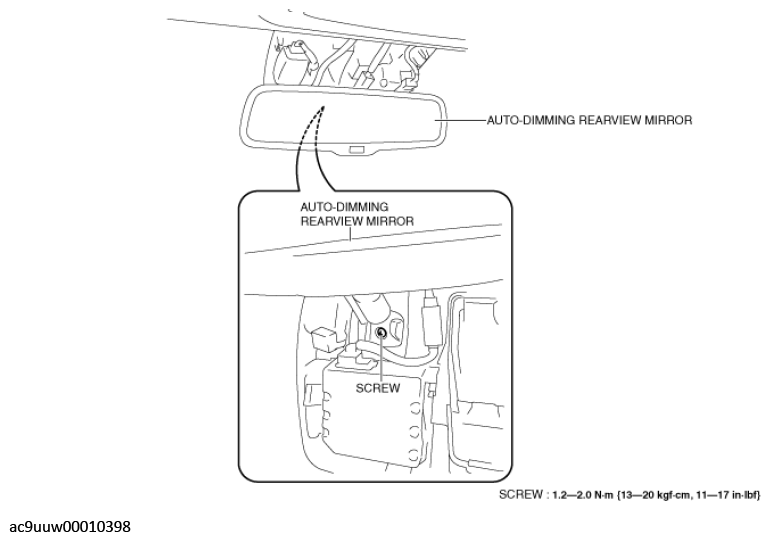

Loosen the screw.

Fig 1: Auto-Dimming Rearview Mirror Screw With Torque Specification
Courtesy of MAZDA MOTORS CORP.

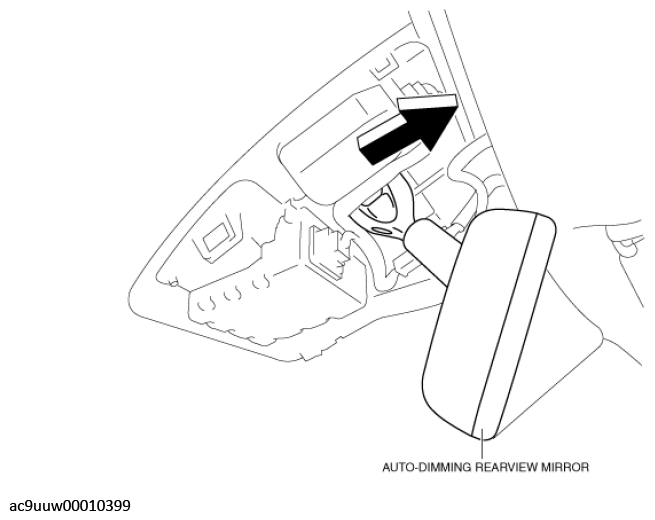

Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
