Mirror Glass Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

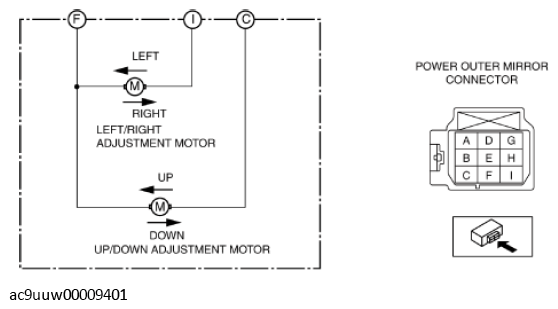

- Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.
- If the power outer mirror does not operate as indicated in the table, replace the power outer mirror.
MIRROR OPERATION DIRECTION DESCRIPTION
| Mirror operation direction | Battery positive voltage connect terminal | Ground connect terminal |
|---|---|---|
| Up | C | F |
| Down | F | C |
| Left | I | F |
| Right | F | I |
