Power Window Sub-Switch Removal/Installation: Passenger-side

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

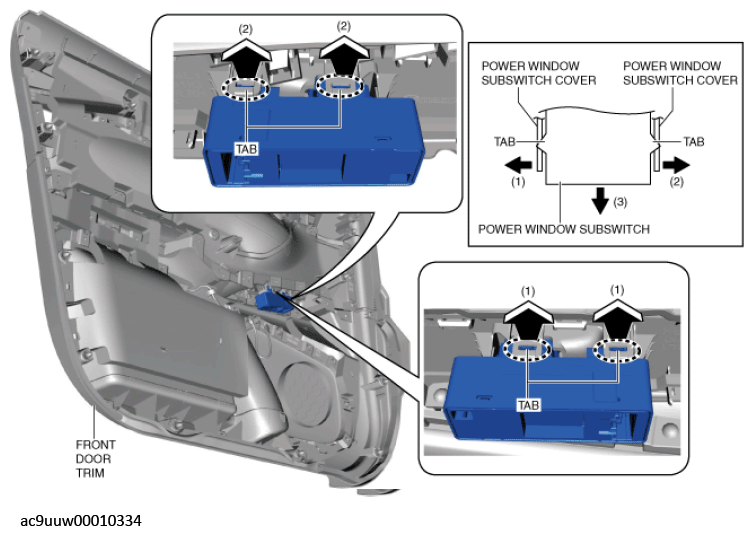

Move the power window sub-switch cover end in the order of arrows (1) and (2) shown in the figure using a remover tool and detach the tabs from the power window sub-switch cover.

Courtesy of MAZDA MOTORS CORP.
Remove the power window sub-switch in the direction of the arrow (3) shown in the figure.
Install in the reverse order of removal.
