Rear Power Window Motor Installation Note

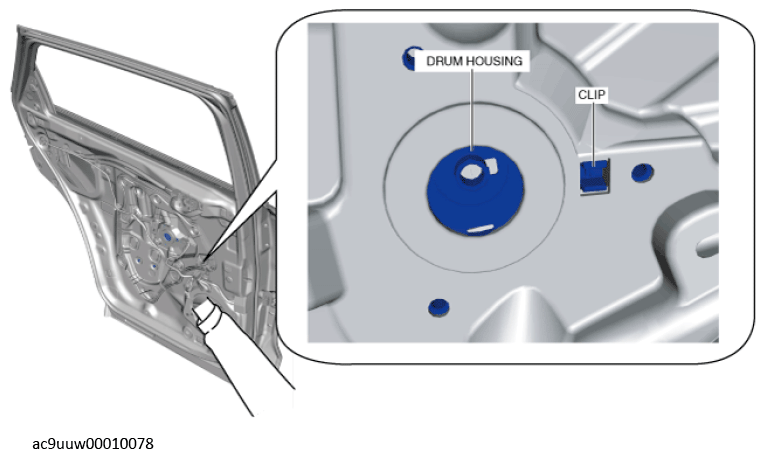

- If the rear power window motor is installed without securing the rear power window regulator drum housing, the drum housing may detach from the rear door module panel and the rear power window motor may not install correctly. When installing the rear power window motor, insert your hand through the rear door speaker installation hole and secure the drum housing so that the clip shown in the figure does not detach.

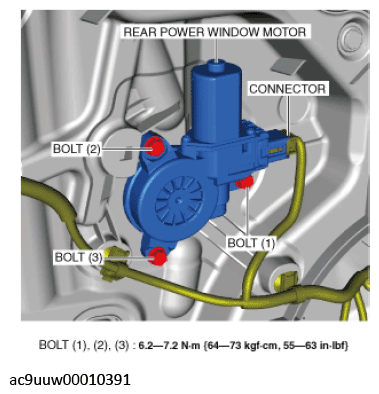

- When installing the rear power window motor installation bolts, tighten the bolts in the order shown in the figure.
