Rear Window Glass Installation

WARNING:
  • Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.
CAUTION:
  • Proper installation of the glass may be difficult if sealant is cracked or the glass is pushed out by air pressure when a door is opened/closed with all the window glass closed. Keep the door glass open until the rear window glass installation is completed.
  1. Remove sealant along the perimeter of the glass using a utility knife or scraper. (when reusing the glass)
  2. Clean and degrease an approx.50 mm {2.0 in} wide strip along the perimeter of the glass.
  3. Inspect the glass for cracks. If it is cracked, chamfer it using sandpaper.

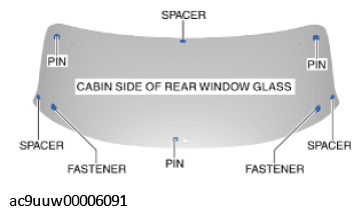

  4. Install spacer, fasteners and pins to the glass as shown in the figure. (when reusing the glass)
    G11434753Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When reusing the glass, align it with the alignment mark placed before the glass was removed.

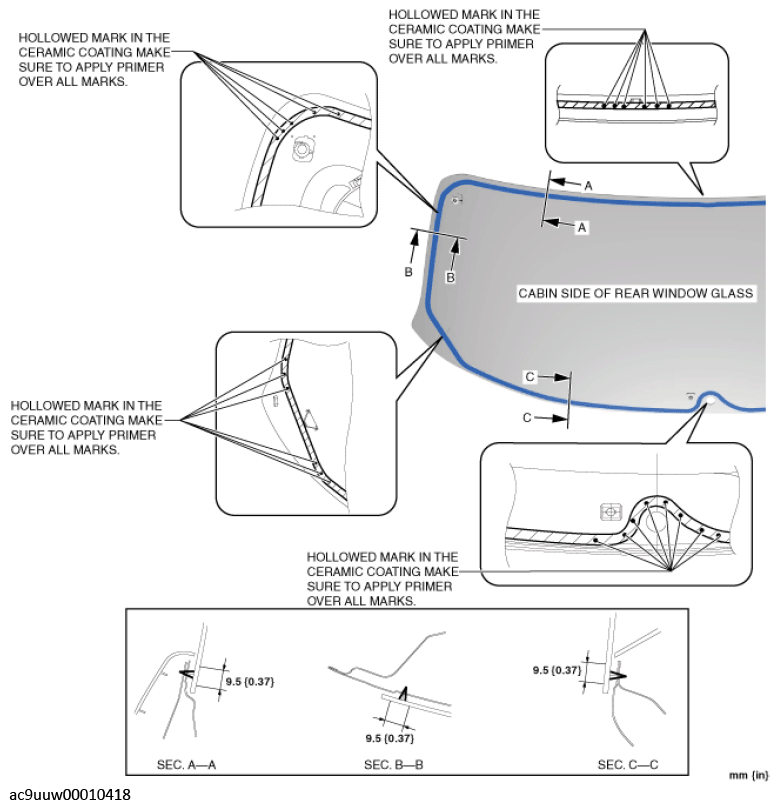

  5. Apply primer to the area of the glass shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    NOTE:
    • Apply primer to the hollowed marks in the ceramic coating.
    G12265587Courtesy of MAZDA MOTORS CORP.

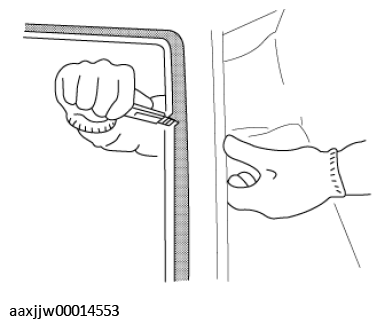

  6. Cut away the old sealant using a utility knife or scraper so that 1-2 mm {0.04-0.07 in} thickness of sealant remains along the perimeter of the frame.
    G11434339Courtesy of MAZDA MOTORS CORP.
  7. Clean and degrease along the perimeter of the bonding area on the body.

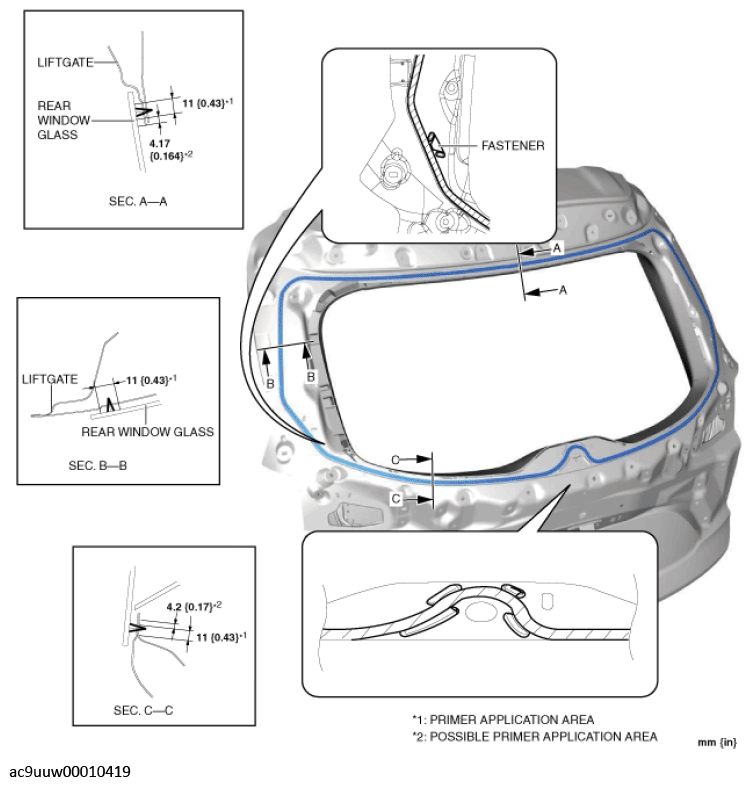

  8. Apply primer to the area of the body shown in the figure.
    • Follow the primer product instructions for the drying time.
    CAUTION:
    • To prevent weakening of the primer adhesion, keep the bonding surface free of dirt, moisture, and grease. Do not touch the surface with your hand.
    G12265589Courtesy of MAZDA MOTORS CORP.
  9. Install the fastener.

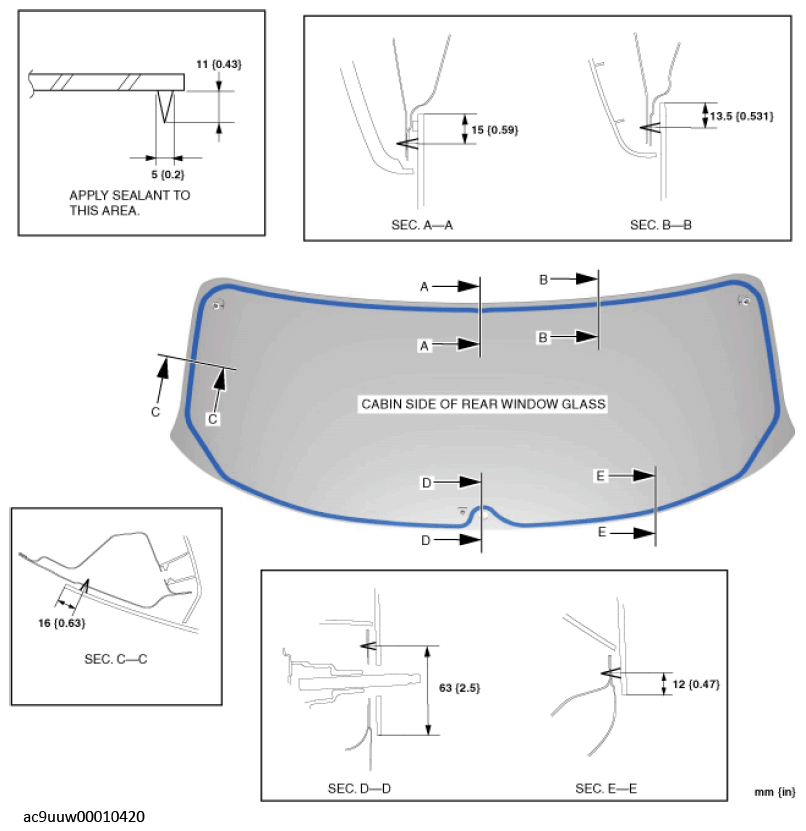

  10. Apply sealant to the area of the glass surface as shown in the figure.
    G12265590Courtesy of MAZDA MOTORS CORP.
  11. Install the rear window glass.

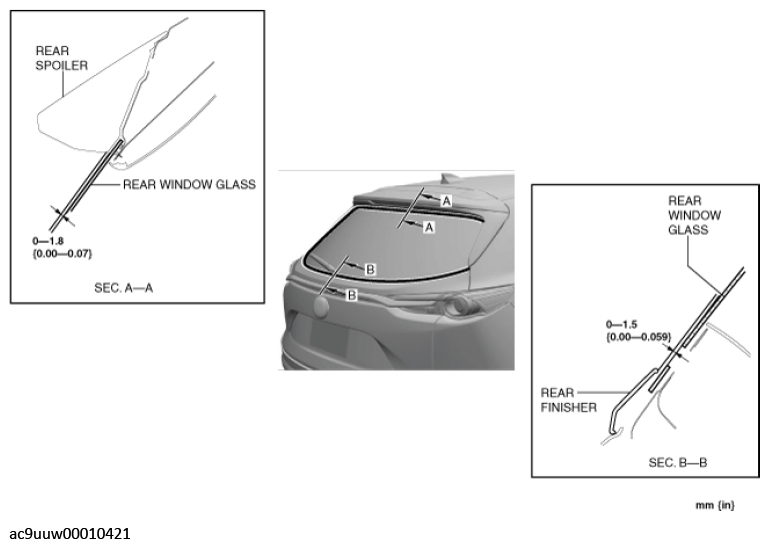

  12. Verify that the gap at the upper and lower parts of the glass is within the specification shown in the figure, then press along the perimeter of the glass.
    G12265591Courtesy of MAZDA MOTORS CORP.

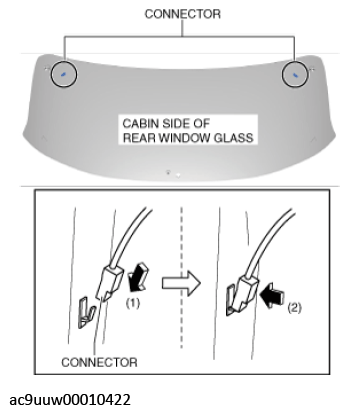

  13. Connect the connectors in the direction of the arrow in the order of (1), (2) shown in the figure.
    G12265592Courtesy of MAZDA MOTORS CORP.

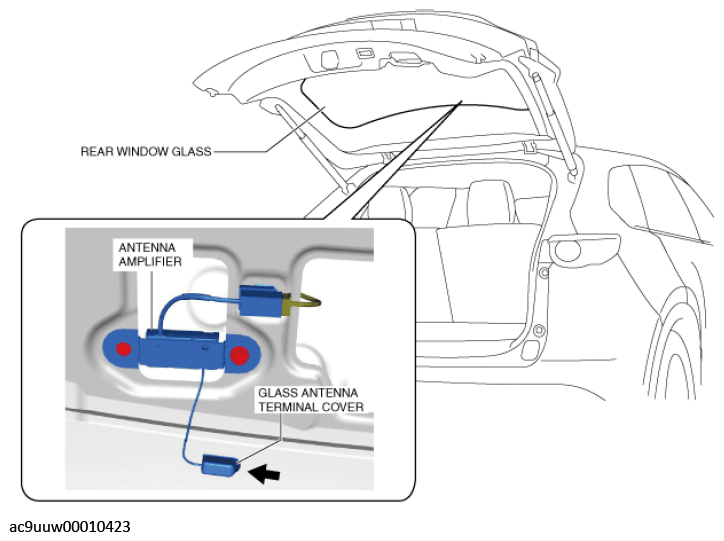

  14. Install the glass antenna terminal cover in the direction of the arrow shown in the figure. (with antenna amplifier)
    G12265593Courtesy of MAZDA MOTORS CORP.
  15. Install the following parts:
    1. Outer bushing (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
    2. Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION .)
    3. Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    4. Rear spoiler (See REAR SPOILER REMOVAL .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
    6. Power liftgate (PLG) rear switch (with power liftgate) (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    7. Liftgate recess cover (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    8. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    9. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  16. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  17. Allow the sealant to harden completely.
    NOTE:
    • Follow the product instructions for the sealant hardening time.
  18. Perform rear window defogger inspection. (See REAR WINDOW DEFOGGER INSPECTION .)
