Reusing Windshield

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION .)
    4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    5. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    6. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    7. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    8. Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
    9. Forward sensing camera (FSC) (with forward sensing camera (FSC)) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
    10. Rain sensor (with auto light/wiper system) (See RAIN SENSOR REMOVAL/INSTALLATION .)
    11. Rearview mirror (without auto-dimming rearview mirror) (See REARVIEW MIRROR REMOVAL/INSTALLATION .)
    12. Auto-dimming rearview mirror (with auto dimming rearview mirror) (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .)
  3. Set the headliner out of the way.
  4. Disconnect the windshield wiper de-icer connector. (with windshield wiper de-icer)
    G12265616Courtesy of MAZDA MOTORS CORP.
  5. Apply protective tape along the edge of the body.
    NOTE:
    • Overlap and adhere the protective tape to the corners to prevent damage.
    G11434776Courtesy of MAZDA MOTORS CORP.
  6. Remove the windshield molding by pulling it outward.
    NOTE:
    • If the windshield molding is difficult to remove, warm the windshield molding using a heat gun.
    G12265618Courtesy of MAZDA MOTORS CORP.

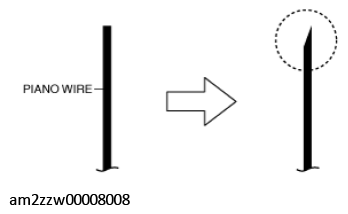

  7. Cut the tip of the piano wire diagonally to facilitate insertion of the piano wire through the sealant.
    G11434778Courtesy of MAZDA MOTORS CORP.
  8. Pass the piano wire through from the cabin side.
    CAUTION:
    • Carefully pass the piano wire so as not to damage the body. If the piano wire contacts the body, the paint may be damaged.

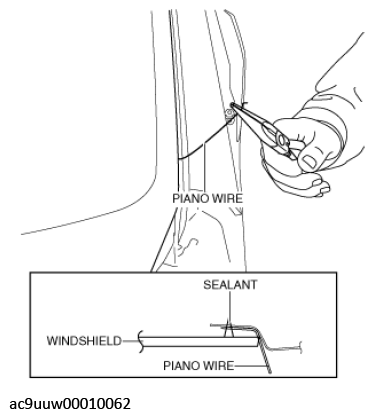

    G12265620Courtesy of MAZDA MOTORS CORP.
  9. Install the piano wire to the piano wire grip.
  10. Secure the piano wire on the outer side, and pull the wire on the cabin side in the direction of the arrow shown in the figure to cut the windshield sealant.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of piano wire to prevent it from breaking due to localized heating.

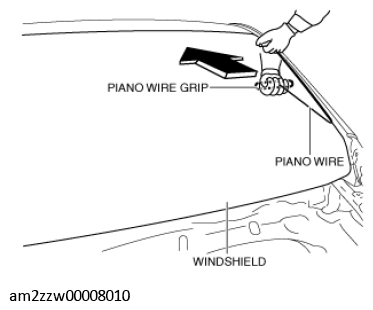

    G11434365Courtesy of MAZDA MOTORS CORP.
  11. When reaching the pin, pull the piano wire out to go around the pin, then pass the piano wire through from the cabin side again.

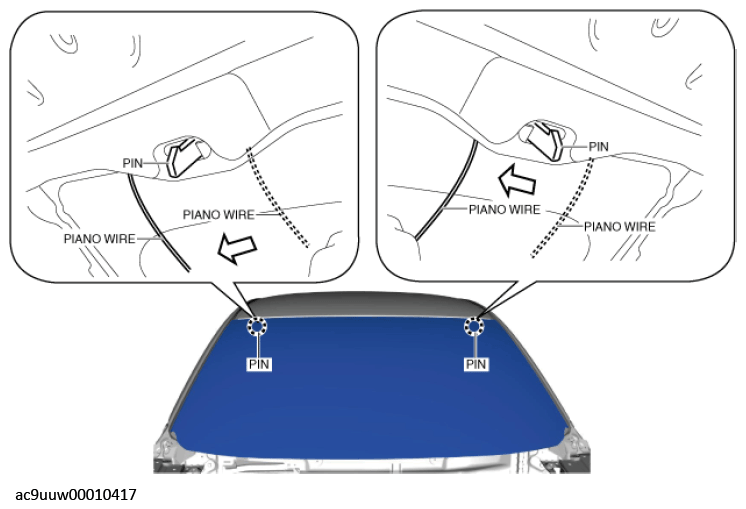

    G12265622Courtesy of MAZDA MOTORS CORP.
  12. Secure one end of piano wire, and while pulling the other end, cut the sealant around the windshield.
  13. Pinch the pin from the inside of the vehicle and detach it.
    NOTE:
    • Before removing the windshield from the body, mark the windshield by affixing tape to the windshield and body panel.
  14. Remove the windshield.
  15. If the pin is damaged, remove the pin.
NOTE:
  • Before removing the pin from the windshield glass, place an alignment mark on the windshield.
