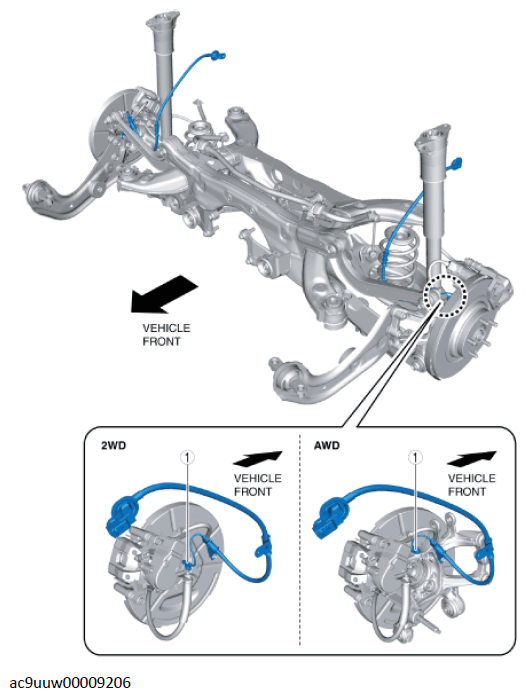

Vehicle Rear Side

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Rear ABS wheel-speed sensor (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD] .) (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [AWD] .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [2WD] .) (See REAR ABS WHEEL-SPEED SENSOR INSPECTION [AWD] .)
