Connector Disconnection Note

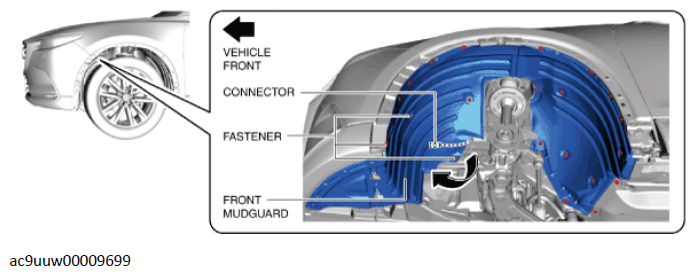

  1. Remove the fasteners.
    G11433121Courtesy of MAZDA MOTORS CORP.
  2. Peel back the front mudguard and disconnect the connector.
