Fuse Block Removal/Installation: Removal

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (LH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (LH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. LF control unit (with advanced keyless entry system) (See LF CONTROL UNIT REMOVAL/INSTALLATION .)
    CAUTION:
    • If the fuse block is removed with the fuses installed, the area around the fuse block may contact the fuses and damage the them. Before removing the fuse block, remove all the fuses.
  3. Remove all the fuses.

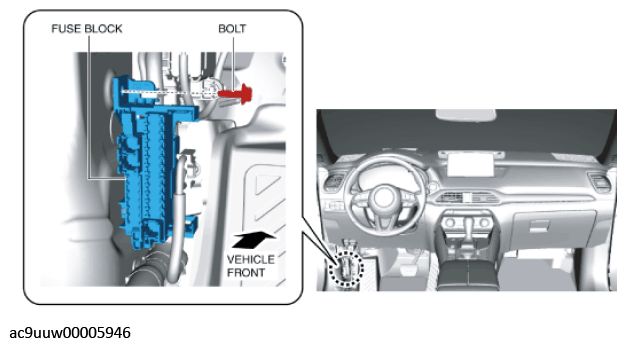

  4. Remove the bolt.
    G11432401Courtesy of MAZDA MOTORS CORP.
  5. While pressing the tab of the fuse block clip in the direction of the arrow (1) shown in the figure, pull the fuse block in the direction of the arrow (2) to detach the tab of the fuse block clip from the body.
    G11432402Courtesy of MAZDA MOTORS CORP.
  6. Remove the fuse block clip from the body.
  7. Cut the band.
    G11432403Courtesy of MAZDA MOTORS CORP.

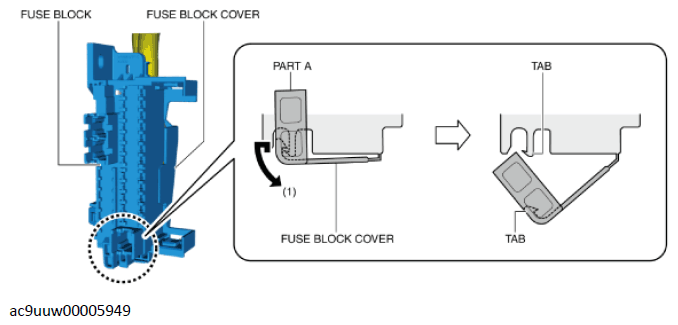

  8. Move part A of the fuse block cover in the direction of the arrow (1) shown in the figure, and detach the tabs of the fuse block cover.
    G11432404Courtesy of MAZDA MOTORS CORP.
  9. Remove the fuse block cover.
  10. Disconnect the connector.
    G11432405Courtesy of MAZDA MOTORS CORP.
  11. Set the fuse block aside so that it does not scratch the vehicle and parts.
