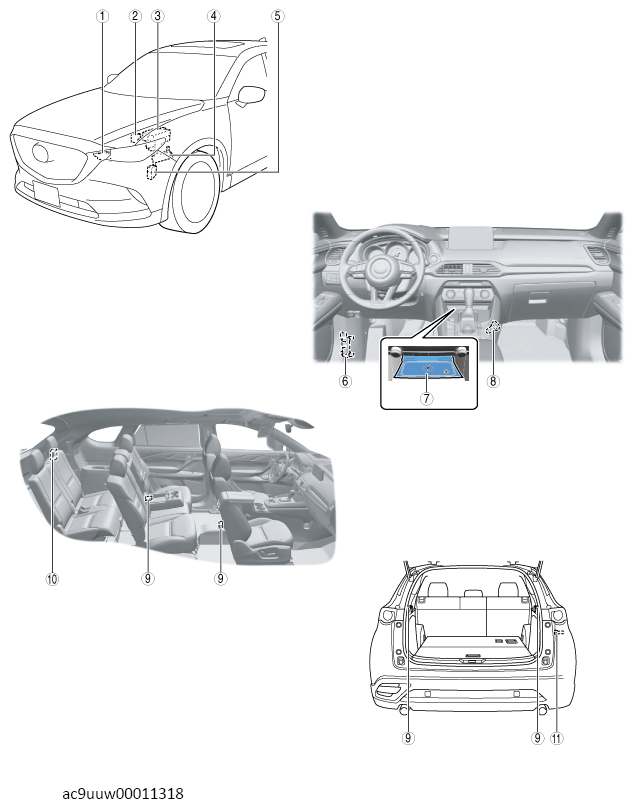

| 1 |
Front wiring harness protector No. 1
(See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION .) |
| 2 |
Main fuse
(See MAIN FUSE REMOVAL/INSTALLATION .) |
| 3 |
Relay and fuse block
(See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .)
(See RELAY AND FUSE BLOCK DISASSEMBLY/ASSEMBLY .)
(See FUSE SERVICE CAUTIONS .)
(See RELAY LOCATION .)
(See RELAY INSPECTION .) |
| 4 |
Front wiring harness protector No. 2
(See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION .) |
| 5 |
Relay box
(See RELAY LOCATION .)
(See RELAY INSPECTION .) |
| 6 |
Fuse block
(See FUSE BLOCK REMOVAL/INSTALLATION .)
(See FUSE SERVICE CAUTIONS .) |
| 7 |
Wireless charger (Qi) (with wireless charger (Qi))
(See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
(See WIRELESS CHARGER (Qi) INSPECTION .) |
| 8 |
Front accessory socket
(See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .)
(See FRONT ACCESSORY SOCKET INSPECTION .) |
| 9 |
USB power outlet (with USB power outlet)
(See USB POWER OUTLET REMOVAL/INSTALLATION .)
(See USB POWER OUTLET INSPECTION .) |
| 10 |
Backup power supply (with backup power supply)
(See BACKUP POWER SUPPLY REMOVAL/INSTALLATION .)
(See BACKUP POWER SUPPLY INSPECTION .)
(See BACKUP POWER SUPPLY BRACKET REMOVAL/INSTALLATION .) |
| 11 |
Rear accessory socket
(See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .)
(See REAR ACCESSORY SOCKET INSPECTION .) |
