Rear Accessory Socket Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

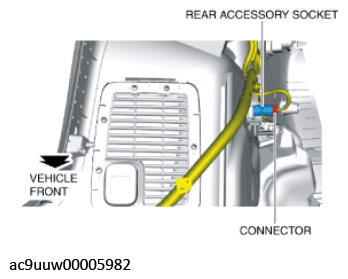

  3. Disconnect the connector.
    G11432418Courtesy of MAZDA MOTORS CORP.

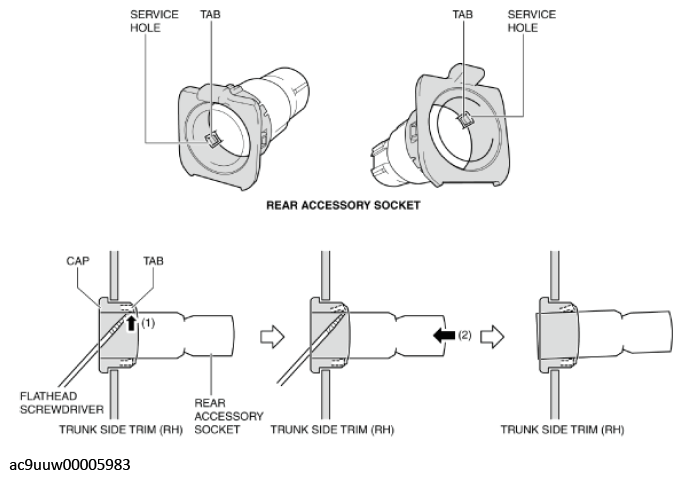

  4. While pressing the cap tab in the direction of the arrow (1) shown in the figure using a tape-wrapped flat head screwdriver, press the rear accessory socket in the direction of the arrow (2) to detach the cap tab from the rear accessory socket.
    G11432419Courtesy of MAZDA MOTORS CORP.
  5. Detach all the tabs of the cap from the rear accessory socket and remove the rear accessory socket from the cap.

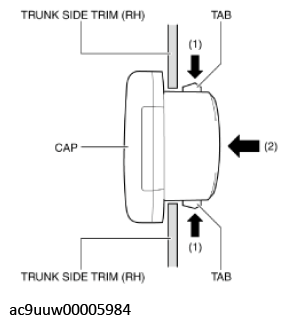

  6. While pressing the cap tabs in the direction of the arrows (1) shown in the figure, press the cap in the direction of the arrow (2) to detach the cap tabs from the trunk side trim (RH).
    G11432420Courtesy of MAZDA MOTORS CORP.
  7. Remove the cap from the trunk side trim (RH).
  8. Install in the reverse order of removal.
