Relay Location

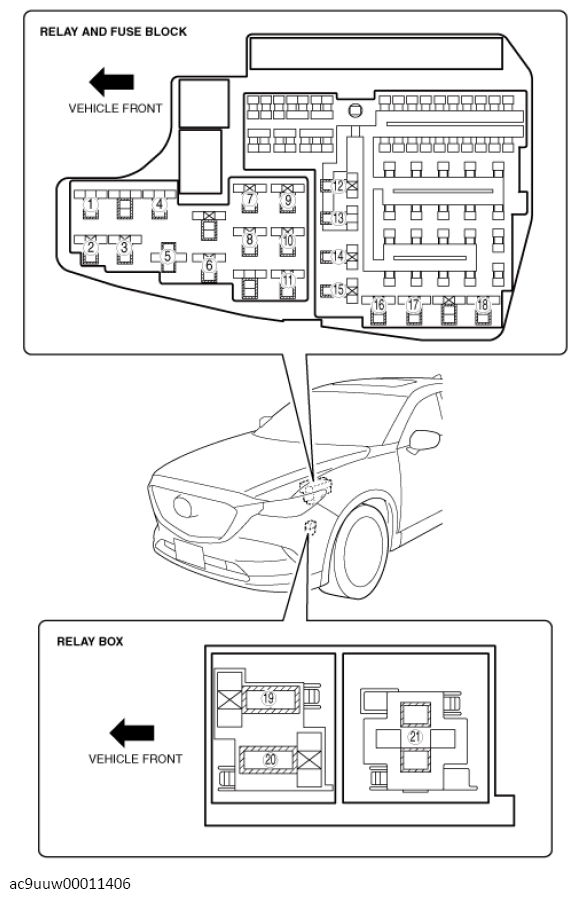

Fig 1: Fuse Block And Relay Box Relay Identification

Courtesy of MAZDA MOTORS CORP.

FUSE BLOCK AND RELAY BOX RELAY IDENTIFICATION

Relay Number	Relay Description
1	Main relay
2	Front fog light relay
3	Rear window defogger relay
4	Headlight LO relay No. 2
5	Front blower relay
6	Electric variable valve timing relay
7	Rear blower relay
8	ACC relay
9	DRL relay
10	Rear outlet relay
11	Starter relay
12	IG1 relay
13	Headlight LO relay No. 1
14	Fuel injector relay
15	Fuel pump relay
16	Headlight HI relay
17	A/C relay
18	TNS relay
19	Windshield wiper de-icer relay
20	Horn relay
21	Cooling fan relay
