WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the selector lever knob. (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
- Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)

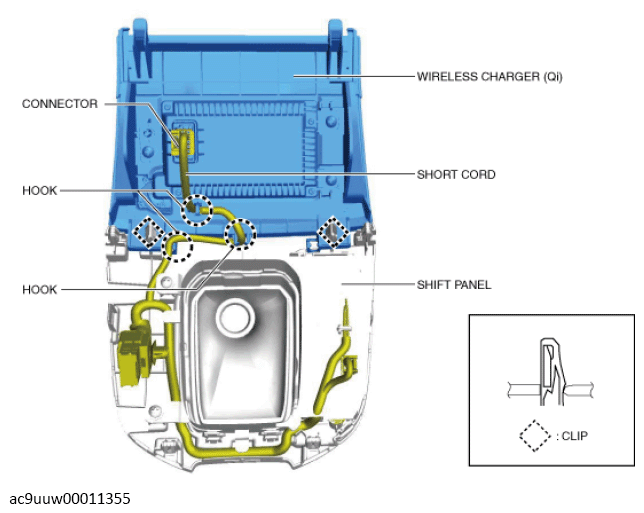

- Detach the hooks from the short cord shown in the figure.
- Disconnect the connector.
- Remove the wireless charger (Qi) while detaching the clips.
- Install in the reverse order of removal.
