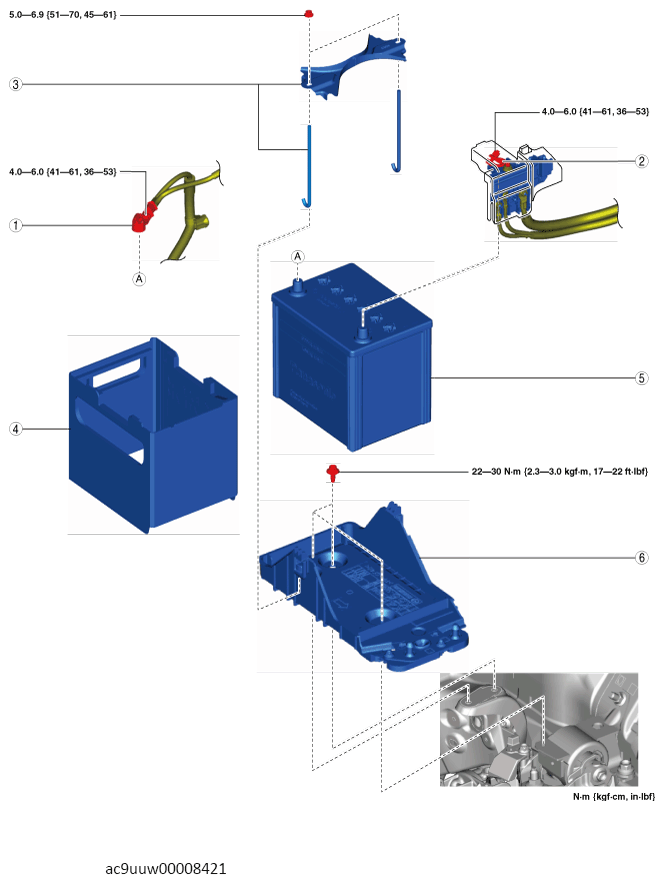

Battery Removal/Installation: Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.PART DESCRIPTION
1 Negative battery terminal
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
(See BATTERY REMOVAL/INSTALLATION .)2 Positive battery cable 3 Battery clamp
(See Battery Clamp Installation Note .)4 Battery box
(See Battery Box Installation Note .)5 Battery 6 Battery tray)
See Battery Tray Removal Note .)
(See Battery Tray Installation Note .)
