Brush Disassembly Note

CAUTION:
  • Melt the solder quickly, Otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

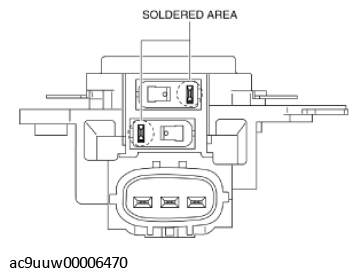

G11436020Courtesy of MAZDA MOTORS CORP.
  1. Melt the solder and remove the brush from the brush holder.
