Generator Disassembly/Assembly: Notes

Special Service Tool (SST)

Mazda SST number Global SST number
49 L018 002 - Serrated bit	Courtesy of MAZDA MOTORS CORP.

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

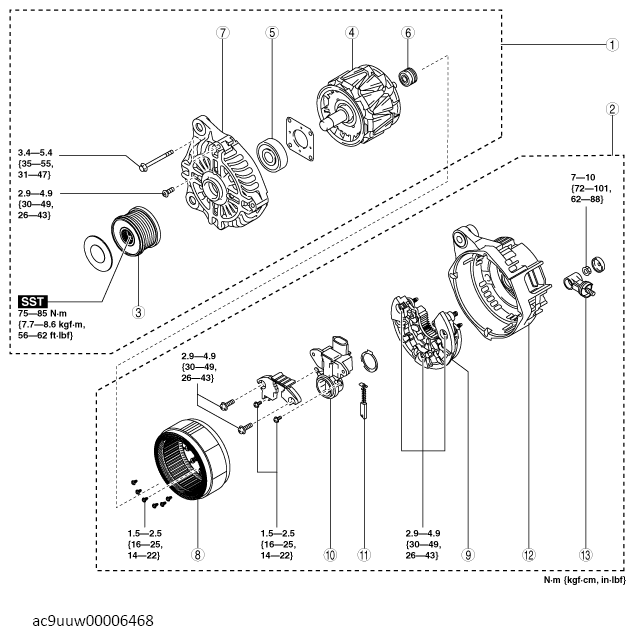

   Fig 1: Generator Components With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   PART DESCRIPTION



   1	Rotor component
   2	Stator coil component
   3	Pulley (See Pulley Disassembly/Assembly Note .)
   4	Rotor
   5	Front bearing
   6	Rear bearing
   7	Front cover
   8	Stator coil
   9	Rectifier
   10	Brush holder
   11	Brush) See Brush Disassembly Note .) (See Brush Assembly Note .)
   12	Rear cover
   13	Terminal B component
