Starting System Location Index

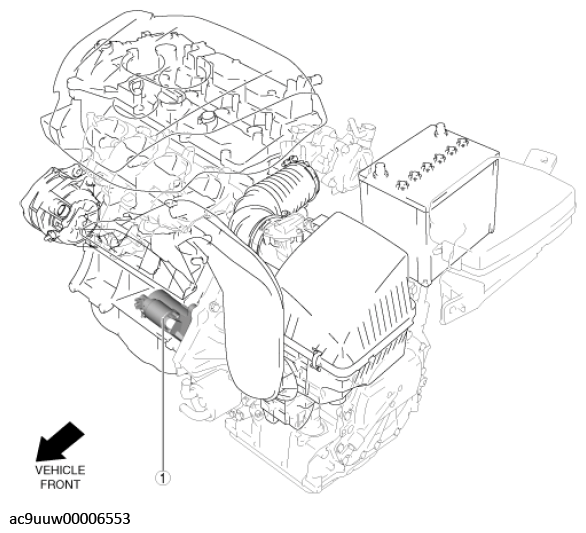

G12244553Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Starter
(See STARTER REMOVAL/INSTALLATION .)
(See STARTER INSPECTION .)
(See STARTER DISASSEMBLY/ASSEMBLY .)
