Exhaust System Removal/Installation (2WD): Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove in the order indicated in the table.
- Remove the insulator. (See INSULATOR NO. 1 REMOVAL NOTE (2WD) .)
- Install in the reverse order of removal.

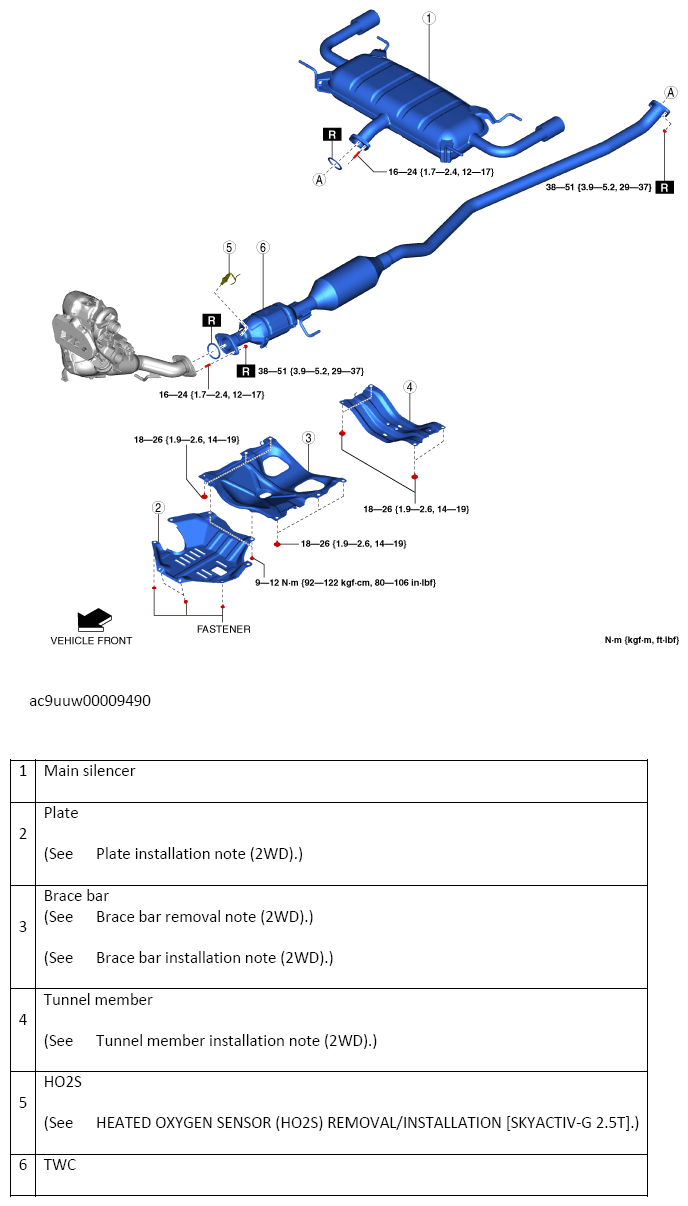

Step 1
PART DESCRIPTION
| 1 | Main silencer |
| 2 | Plate (See PLATE INSTALLATION NOTE (2WD) .) |
| 3 | Brace bar) See BRACE BAR REMOVAL NOTE (2WD) .) (See BRACE BAR INSTALLATION NOTE (2WD) .) |
| 4 | Tunnel member (See TUNNEL MEMBER INSTALLATION NOTE (2WD) .) |
| 5 | HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 6 | TWC |
Step 2
PART DESCRIPTION
| 1 | Insulator No. 1) See INSULATOR NO. 1 REMOVAL NOTE (2WD) .) (See INSULATOR NO. 1 INSTALLATION NOTE (2WD) .) |
| 2 | A/F sensor (See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 3 | Insulator No. 2 (See INSULATOR NO. 2 INSTALLATION NOTE (2WD) .) |
| 4 | WU-TWC (See WU-TWC INSTALLATION NOTE (2WD) .) |
| 5 | Insulator No. 3 |
| 6 | Dynamic pressure turbo (See DYNAMIC PRESSURE TURBO REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) |
| 7 | Exhaust manifold (See EXHAUST MANIFOLD INSTALLATION NOTE (2WD) .) |
