PCM Component Installation Note

Install the PCM component using the following procedure:

Temporarily tighten the bolt shown in the figure.

Courtesy of MAZDA MOTORS CORP.

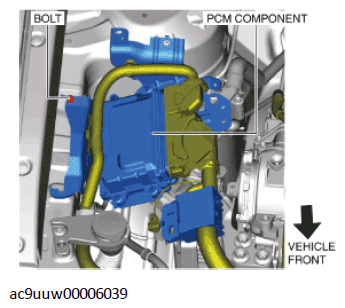

Tighten the PCM component installation bolts in the order shown in the figure.

Fig 1: PCM Component Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

9-10 N.m {92-101 kgf.cm, 80-88 in.lbf}
Install the wiring harness protector and connector.

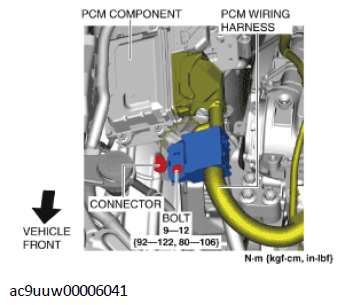

Fig 2: PCM Component, PCM Wiring Harness, Connector And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install the ground cable shown in the figure.

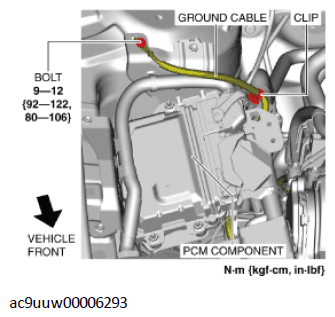

Fig 3: PCM Component, Ground Cable, Clip And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
