Continuity Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Disconnect the fuel pump unit connector. (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)

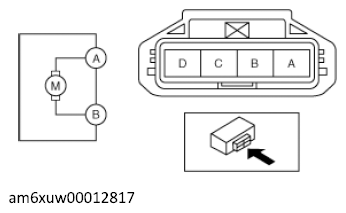

  3. Inspect for continuity between fuel pump unit terminals A-B.
    G12230193Courtesy of MAZDA MOTORS CORP.
