Fuel Pump Unit Removal/Installation: AWD

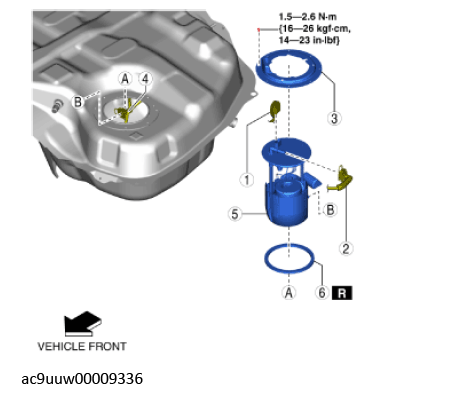

Fig 1: Fuel Pump Unit Components With Torque Specification (AWD)

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Fuel pump unit connector
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
3	Set plate
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
5	Fuel pump unit
6	Packing
