U.S.A. and CANADA: Notes

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
Drain the fuel. (See FUEL DRAINING PROCEDURE .)
Open the fuel-filler lid.
Remove the rear wheel and tire (LH). (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
Remove the rear mudguard (LH). (See REAR MUDGUARD REMOVAL/INSTALLATION .)
Remove the floor under cover No. 2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

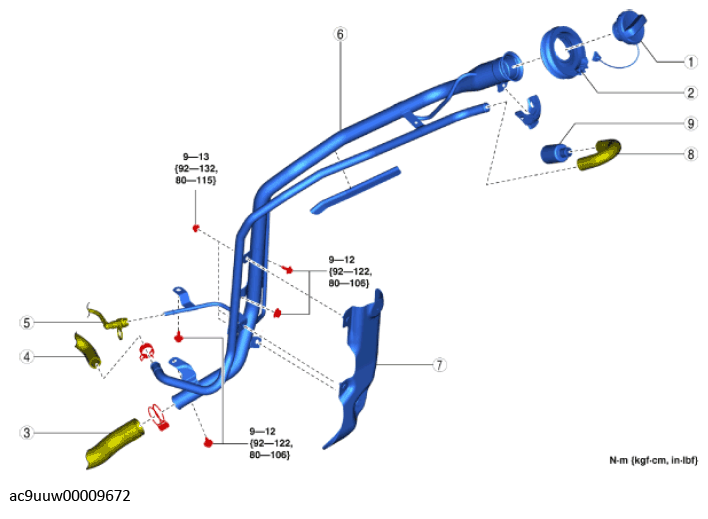

Fig 1: Fuel-Filler Pipe Components With Torque Specification (USA And Canada)
Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Fuel-filler cap
2	Dust cover (See Dust cover removal note (U.S.A. and CANADA) .)
3	Joint hose (See Joint hose installation note (U.S.A. and CANADA) .)
4	Evaporative hose No. 1
5	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION .)
6	Fuel-filler pipe
7	Fuel-filler pipe protector
8	Evaporative hose No. 2
9	Plug
